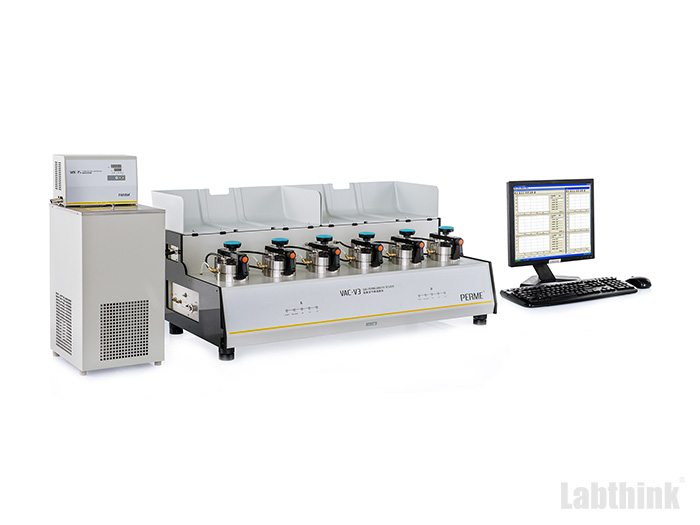

Labthink VAC-V3气体渗透率测试仪

  • 制造商: Labthink
    Model: VAC-V3
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture: Labthink

Model:  VAC-V3

Warranty: 12 months


Specifications Film Test

Test Range:

- 0.1~50,000 cm3/m2•24h•0.1MPa (Standard volume for group A)

- 1.0~500,000 cm3/m2•24h•0.1MPa (Extended volume for group A)

- 0.01~1,000 cm3/m2•24h•0.1MPa (Group B)

Number of Specimens: 6 pieces with independent test results (group A and group B, each with 3 pieces)

Vacuum Resolution:

- Group A 0.1 Pa

- Group B 0.01 Pa

Vacuum Degree of Test Chamber: <20 Pa

Temperature: 5°C ~ 95°C

Accuracy: ±0.1°C

Specimen Size: Φ97 mm

Test Area: 38.48 cm2

Test Gas: O2, N2 and CO2 (outside of supply scope)

Test Pressure: -0.1MPa ~ +0.1MPa

Gas Supply Pressure: 0.4MPa ~ 0.6MPa

Port Size: Φ6 mm PU Tubing

Instrument Dimension: 1370 mm (L) x 575 mm (W) x 450 mm (H)

Power Supply: 220VAC 50Hz / 120VAC 60Hz

Net Weight: 160 kg
