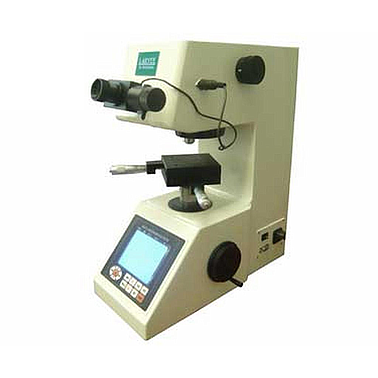

Laryee HVM-50 硬度计

  • 制造商: Laryee
    Model: HVM-50
    • 报价要求 报价要求
  • 213,248,400 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Laryee
Model: HVM-50
Warranty: 12 months

- Test load(N)
9.807/19.61/24.52
29.42/49.03/98.07
196.1/294.2/490.3
- Test load(Kgf):
1/ 2 / 2.5 / 3
5 / 10 / 20 /30 /50
- Carriage control: Automatic (loading/dwell-time/unloading)
- Load holding time: 0~60 seconds
- Magnification of microscope: 100X, 200X
- Microscope Min. measuring unit: 0.0625um(400X) 0.125um(200X) 0.250um(100X)
- Testing range: 1HV~2967HV
- Lens/indenter switch: HVS series with hand Turret, HVM series with motorized turret
- Hardness Scales: HVM whith function of convert HB,HRC,HRA,HRB,HRN,HRT,
- Max. height of specimen: 170mm
- Max. depth of specimen: 130mm
- Light source: Cold Light Source
- Power: 1P~110V/220V, 50/60HZ
- Objective: 10X, 20X and 40X can be selected according to user’s requirement
- Dimension: 535mmX225mmX630mm
- Weight: Gross weight:60KG; Net weight: 50KG
- Main Standard accessories:
Large test table; “V” shape test table;
10X Digital micro eyepiece ; Lever ; Adjustable screw; Vickers hardness block, RS232 Cable, Mini Printer
- Option accessories
CCD Video system(HV-CCD),
HK hardness test
