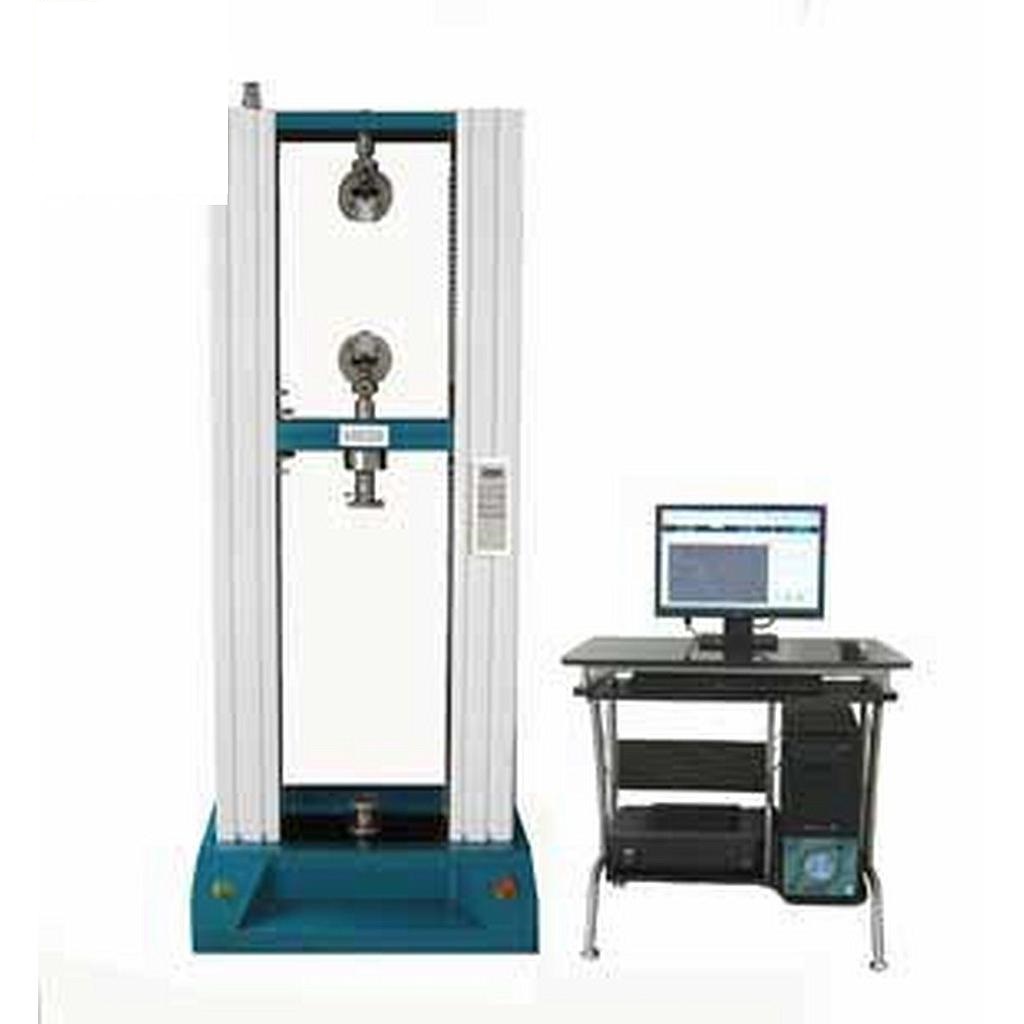

Laryee UE2402电脑控制电子万能试验机(2KN,0.4% - 100%FS,双型)

  • 制造商: Laryee
    Model: UE2402
    • 报价要求 报价要求
  • 259,327,200 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Laryee
Model: UE2402
Warranty: 12 months

- Maximum force(KN): 2
- Machine type: Double
- Accuracy: ≤±0.5%
- Measuring range of force (KN): 0.4%--100%F.S
- Resolution of force: 1/300000 of maximum force
- Accuracy of displacement measuring: ±0.5%
- Resolution of displacement: 0.1 μm
- Accuracy of deformation measuring: ±0.5%
- Speed range of displacement control: 0.01-500mm/min (Max 1000mm/min as special order)
- Speed range of force control: 0.005-5% F.S / S
- Speed range of deformation control: 0.005-5% F.S/S
- Range of constant displacement, force and deformation: 0.5%-100% F.S
- Speed controlling accuracy: ≦±1.0% of the set value
- Valid tension testing space(mm): 800
- Compression testing space(mm): 900
- Valid width between columns(mm): 400
- Tension Sample
+ Clamping (mm): Flat grips: 0~14
+ Round grips: Ø4~14
- Power supply: 1P~220V, 1-3 kW, 50/60Hz
- Working environment: Room temperature: 10℃~40℃, relative humidity: ≤90%
- Over Dimension without PC table (mm): 830×550×1950
- Weight(Kg): 600kg

Standard Accessories:
Wedge Tension, Compression Plate, 3-Points bending accessories; Encoder installed; Load cell installed; Servo motor
and controller built in; Extensometer; DSP PCI Control card; Installation tools; PC and Printer.

Optional Accessories
Wedge Tension 1
Wedge Tension 2
Pneumatic Tension
Flat Tension
Film Tension
Opposite Peeling
Thread Tension 1
Thread Tension 2
Bolt Tension
Nail Withdraw
3-Points Bend
Shear
4-Points Bend
Compression Plate
Wood Shear
Wood Bending
