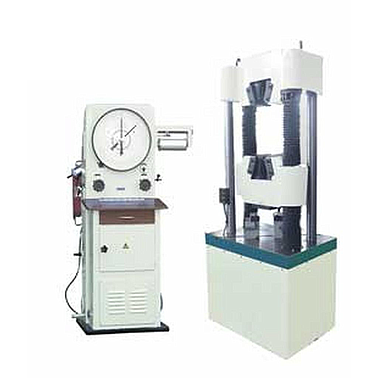

Laryee UH5130液压万能试验机(6~300kN)

  • 制造商: Laryee
    Model: UH5130
    • 报价要求 报价要求
  • 276,472,800 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Laryee
Model: UH5130
Warranty: 12 months

- Measuring range of force(kN): 6~300kN
- Accuracy: ±1% of indicated value
- Subsection of force: 1,2,5 for Dial type or No grade by Digital and Computer
- Tracing Plate speed: 0.4r/min, 0.8r/min, 2r/min for Dial type
- Clamping diameter for round specimen(mm): Ø10-32
- Clamping width of flat specimen: 70 mm
- Clamping thickness of flat specimen(mm): 0-15
+ Testing space
+ Tension: 620mm
- Compression: 550mm
- Compression Platen size(mm): Ø120
- Distance of bending by pass roll(mm): 60-320
- Piston stroke: 200mm
- Power supply: 380/220v±10%, 50/60Hz, 3 phase
- Working environment: Room temperature 10℃~30℃,relative humidity≤80%
- Overall dimension(mm)
+ Host machine: 800x500x1950
+ Dynomometer: 1070x810x1730
- Weight: 2700 kg
- Standard accessories:
Tension Test Accessories, Compression
Test Accessories,Bending Test Accessories,
A, B, C Weights, coordinate paper,
Dial Dynomometer
- Optional Accessories:
Shearing Test Accessories
photoelectric encoder,
Extensometer, PC interface and Software
