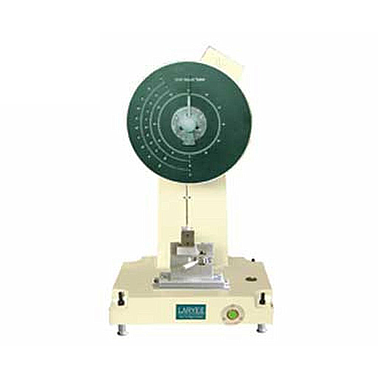

Laryee ZIT2122伊佐德冲击试验机(5.5J,11J,22J)

  • 制造商: Laryee
    Model: ZIT2122
    • 报价要求 报价要求
  • 63,492,300 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Laryee
Model: ZIT2122
Warranty: 12 months

- Impact energy: 5.5J, 11J, 22J
- Energy Accuracy: 1%
- Impact speed (m/S): 3.5
- Pendulum moment:
Pd1 = 0.53590Nm Pd2.75 = 1.47372Nm
Pd5.5 = 2.94744Nm Pd11 = 5.8949Nm Pd22 = 11.7898Nm
- Distance between striking edge to upper surface of clamps: 22mm
- Raising angle: 150°
- Round angle radius of striking edge: R=0.8mm
- Sample span size(mm): 10, 12.7
- Impact center distance (mm): 335
- Scale Reading:
0-5.5J Min. scale: 0.05J
0-11J Min. scale: 0.1J
0-22J Min. scale: 0.2J
- Dimension: 650×400×1100mm
- Weight(Kg): 95kg
