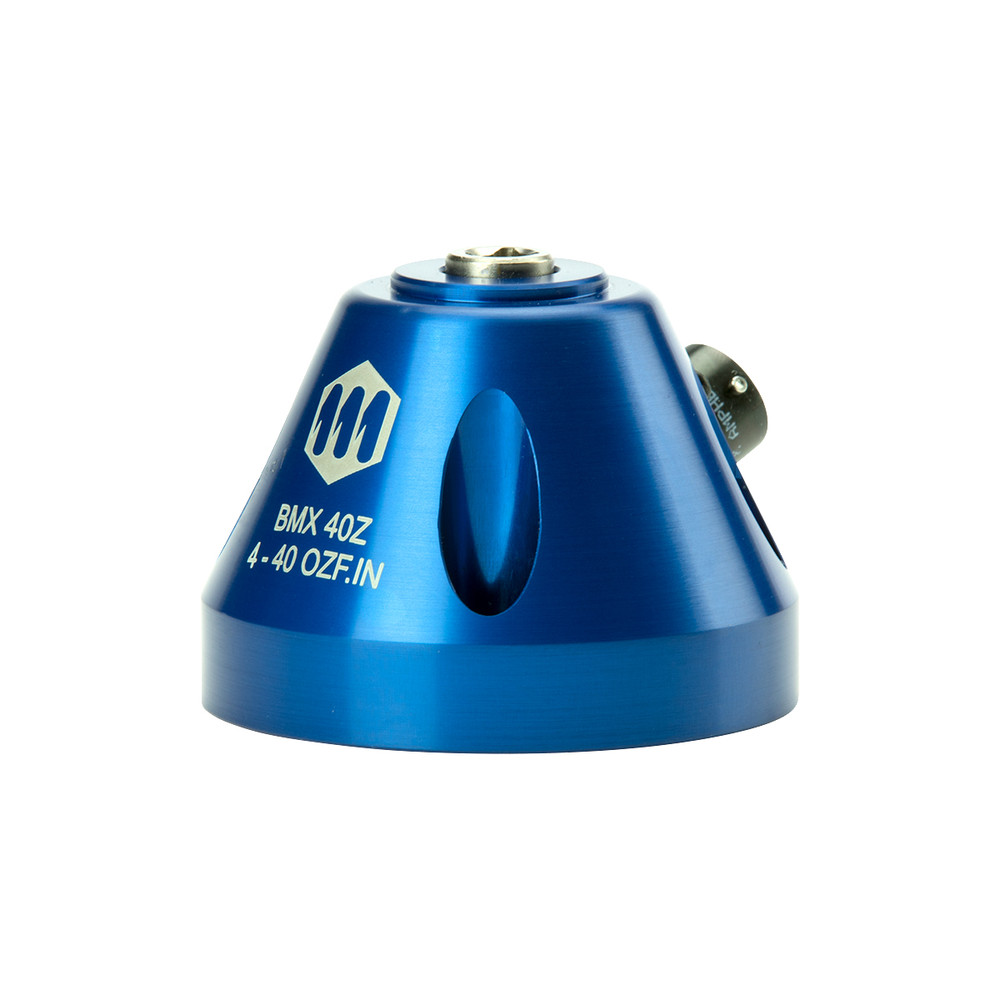

Mountz BMX40z(077001)BMX扭矩反应传感器(2.9 - 28.2 cN.m; 1/4 F / Sq)

Input Driver type: 1/4 F/Sq Dr.
Torque range : 4 - 40 ozf.in/ 2.9 - 28.2 cN.m
Rated Output: 2mv/v Nominal
Safe Overload: 125% of Rated Output
Bridge Resistance: 350 Ohms Nominal
Nonlinearity: +/ 0.1% of Rated Output

Details

datasheet

manual

FEATURES:
Meeting the demands to test multiple torque ranges for various torque tools used in production, maintenance and calibration labs, the versatile torque sensor is used in conjunction with a torque tester. The torque sensor is a bench mounted calibration instrument designed for torque wrench calibration, torque screwdriver calibration, and electric & pneumatic screwdriver calibration. Controlling torque is quintessential for companies to ensure their product's quality, safety and reliability isn't compromised.
Torque Sensor for calibrating hand screwdrivers, wrenches and power tools.
Various models that range from 2 ozf.in to 20,000 lbf.ft.
Features “ARC II” technology, an instant auto-recognition system of the BMX connected to the FTA-100, PTT or LTT torque testers.
Mountable.
Female square drive.
Bi-directional.
Accuracy ± .25% of full scale*.
Accuracy ± 0.5% of full scale* for:
(BMX10,000F & 20,000F models)
Note: * This is the stand alone accuracy for the torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (FTA-100, PTT or LTT).
