NOVOTEST UT-3K-EMA 超声波测厚仪

  • 制造商: NOVOTEST
    Model: UT-3K-EMA
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Ultrasonic Thickness Gauge NOVOTEST UT-3A-EMA

Thickness measurement (steel) – 2...60 mm

Without application of couplant and advance surface preparation,through air gap

Allows user to put the probe not exact perpendiculary to the surface,

Allows to reduce the human factor and disturbing factors

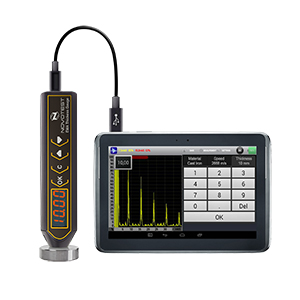

User can connect gauge to a tablet, smartphone or other device

based on Android OS. Allows user to expand the capabilities of the

UT-3K-EMA thickness gauge to the level of a modern flaw detector

The device has a bright contrast LCD display

A-scan, B-scan, calibration settings

Three thickness measurement modes:


Specification

Measuring thicknesses range for steel, mm: 2.0...60.0

Basic measurement accuracy, mm: 0.08

Permissible gap between device and testing

object, mm: Up to 3

Permissible probe vertical deviation to the

testing surface normal, grad: ±25

Maximum measurements per second: 16

Setting range of the ultrasonic velocity, m / s: 1000-9999 with 1m/s step

Operating oscillation range, MHz: 3...5

Excitation wave type:Transverse wave, radial-

polarized wave in surfacenplane of testing object

Operating temperature range, ° C: -20 to +50

Overall dimensions, mm: 163x39x32

Time of continuous work hours, not less, h: 5


Standard set:

EMA Thickness Gauge

batteries

Tablet

Charger

Cables

Calibration certificate

Operating manual

Case


Available options:

Couplant; UT-probes; Calibration blocks
