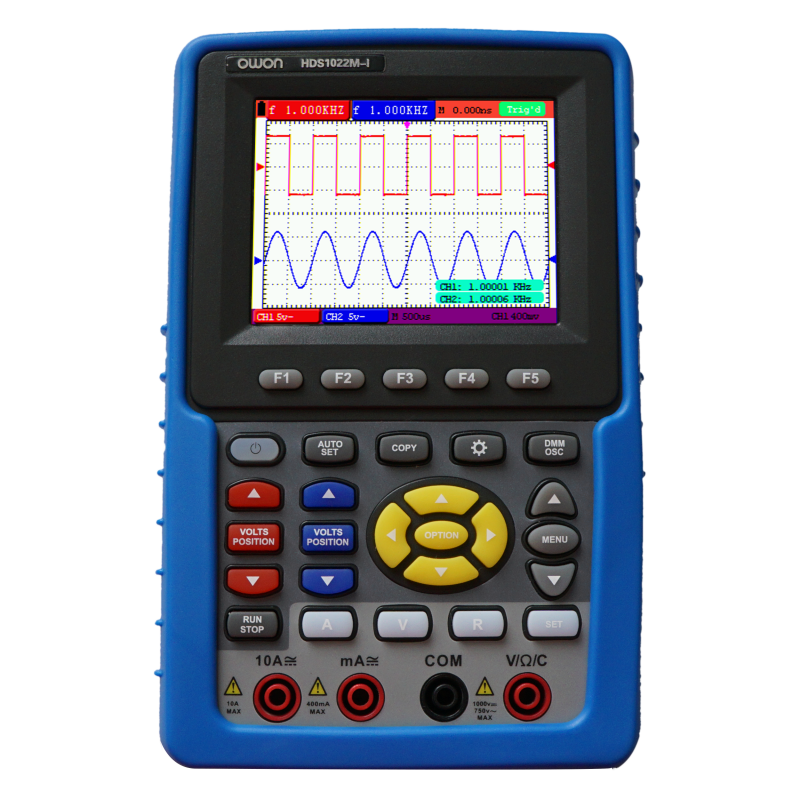

Owon HDS1022M-I 手持式示波器(20MHz,2个隔离通道,100MS / s)

  • 制造商: OWON
    Model: HDS1022M-I
    来源: China
    • 报价要求 报价要求
  • 14,288,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Model: HDS1022M-I
Manufacture: Owon
Warranty: 12 tháng

Bandwidth 20MHz
Sample Rate 100MS/s
Rise Time (at input, typical) ≤17.5ns
Record Length 6K points
Channel dual, insulated ground of 1000 : 1
Display 3.7'' color TFT LCD, 640 x 480 pixels
Floating Meas. Channel insulated input ground between multimeter / oscilloscope mode
Input Coupling DC, AC, and GND
Input Impedance 1MΩ±2%, in parallel connection with 15pF± 5pF
Horizontal Scale (s/div) 5ns/div - 100s/div, step by 1 - 2 - 5
Interval (△T) Accuracy single: ±(1 interval time + 100ppm x reading + 0.6ns),
average>16: ±(1 interval time + 100ppm x reading + 0.4ns)
Vertical Sensitivity 5mV/div - 5V/div (at input )
Vertical Resolution 8 bits
Max Input Voltage 400V (DC + AC / PK - PK, 1MΩ input impedance, probe attenuation in 10 : 1)
Trigger
Type Edge rising edge, falling edge
Video line, field, random line, odd / even fields
Alternate
Trigger Mode Auto, Normal, and Single
Automatic
Measurement Vpp, Vavg, Vrms, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Freq, Period,
Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
DC Accuracy (average) average>16: ±(5% reading 0.05 div) for △V
Waveform Math +, -, *, / , FFT, invert
Waveform Storage 4 waveforms
Lissajous
Figure Bandwidth full bandwidth
Phase Difference ±3 degrees
Cursor Measurement △V, and △T between cursors
Communication Interface USB host, and USB device
Battery built-in Li-ion battery, 7.4V / 3500mAh
Dimension (W / H / D) 180 x 113 x 40 mm
Weight 645 g
Multimeter Specifications
Voltage VDC : 400mV, 4V, 400V : ±(1% ± 1 digit); max input : DC 400V
VAC : 4V, 40V, 400V : ±(1% ± 3 digits), Frequency : 40Hz - 400Hz;max input : AC 750V (virtual value)
Current DCA: 40mA, 400mA: ±(1.5% ±1 digit), 10A: ±(3% ± 3 digits)
ACA: 40mA: ±(1.5% ± 3 digit); 400mA: ±(2 ± 1 digit); 10A: ±(3% ± 3 digits)
Impedance 400Ω: ±(1% ± 3 digits); 4KΩ / 40KΩ / 400 KΩ / 4MΩ: ±(1% ± 1 digit); 40MΩ: ±(1.50% ± 3 digits)
Capacitance 51.2nF - 100uF : ±(3% ± 3 digits)
