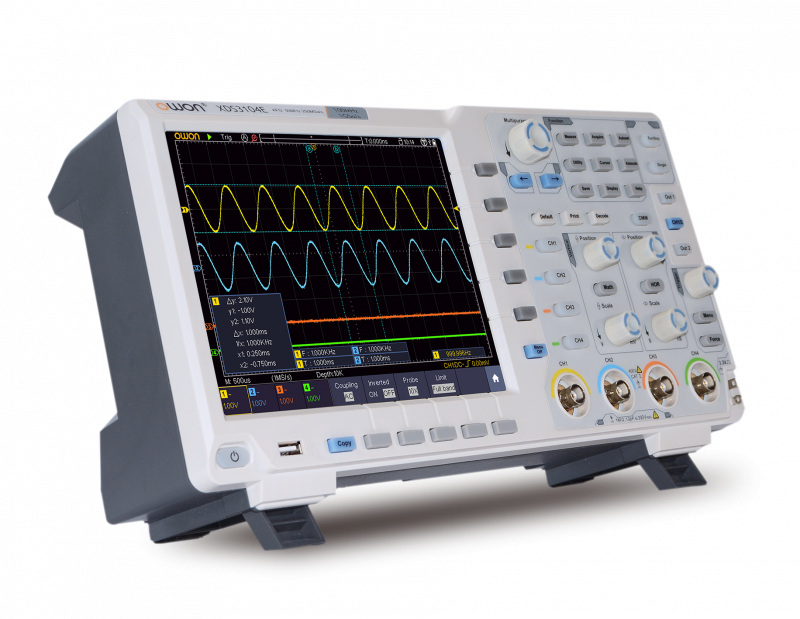

Owon XDS3104AE数字示波器(100MHz,1GS / s,4通道)

  • 制造商: OWON
    Model: XDS3104AE
    来源: China
    • 报价要求 报价要求
  • 18,048,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Model: XDS3104AE
Manufacture: Owon
Warranty: 12 Months

Bandwidth 100MHz
Sample Rate 1GS/s
Vertical Resolution (A/D)) 14 bits
Record length 40M
Waveform Refresh Rate 45,000 wfms/s
Horizontal Scale (s/div)) 2ns/div - 1000s/div, step by 1 - 2 - 5
Channel 4
Display 8" color LCD, 800 x 600 pixels display
Sample Rate / Relay Time Accuracy ±1ppm
Input Coupling DC, AC, GND
Vertical Sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,
and CAN (optional)
Bus Decoding(optional) I2C, SPI, RS232, CAN
Trigger Mode Auto, Normal, and Single
Vertical Range ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div)
Waveform Math +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function
Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Frequency Counter available
Power Supply 100V - 240V AC, 50/60Hz, CAT II
Fuse 2A, T class, 250V
Battery (optional) 3.7V, 13200mA
Dimension (W x H x D) 340mmx177mmx90mm

Optional Module / Function
VGA VGA+AV port
WIF Wifi
AWG arb waveform generator
DMM digital multimeter
MTS Touch screen(capacitor-type)
