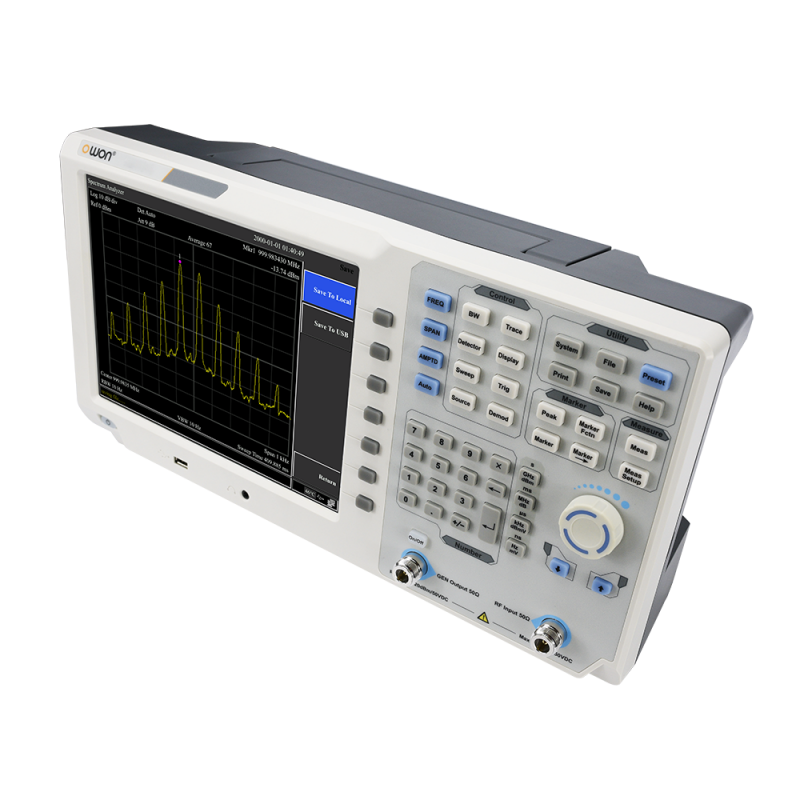

Owon XSA1015-TG 频谱分析仪(9KHz~1.5GHz)

  • 制造商: OWON
    Model: XSA1015-TG
    • 报价要求 报价要求
  • 28,200,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Model: XSA1015TG
Manufacture: Owon
Warranty: 12 tháng

Frequency Range 9kHz-1.5 GHz
Resolution 1Hz
Frequency span
Range 0 Hz,100 Hz to maximum frequency of device
Accuracy ± span /(swept points -1)
Internal reference
Reference frequency 10.000000 MHz
Temperature stability <2.5ppm (15℃ to 35℃)
Aging rate <1ppm/year
Bandwidth
Resolution bandwidth (-3 dB) 10Hz to 500kHz(in 1 to 10 sequence), 1MHz,3MHz
Video bandwidth (-3 dB) 10Hz to 3MHz
Phase noise
20 ℃ ~30 ℃,fc=1 GHz
Phase noise <-85 dBc/Hz @10 kHz offset
<-100 dBc/Hz @100 kHz offset
<-110 dBc/Hz @1 MHz offset
level unit dBm,dBuW,dBpW,dBmV,dBuV, W,V
Points 201~1001
Number of traces 5
Detectors Positive-peak, negative-peak, sample, normal, RMS
Trace functions Clear write, Max Hold, Min Hold, View, Blank, Average
Display TFT LCD,10.4 inches
Weight 5.0 kg
Dimension (W x H x D) 321 x 221 x 115 (mm)
