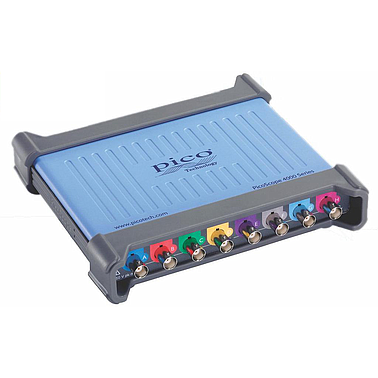

Pico PicoScope 4444 示波器套件(20Mhz,4通道)

  • 制造商: PICO
    Model: PicoScope 4444 standard kit
    保障: 12 month
    • 报价要求 报价要求
  • 39,691,500 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Model: PicoScope 4444 standard kit
Manufacture: Pico
warranty: 12 months


input channels 4 channels
Analog bandwidth (–3 dB) 20 MHz with D9-BNC adaptors
15 MHz with PicoConnect 441 probe
Rise time (calculated) 17.5 ns with D9-BNC adaptors
23.3 ns with PicoConnect 441 probe
Bandwidth limiter 100 kHz or 1 MHz (selectable)
Vertical resolution, 12-bit mode 12 bits on most input ranges
11 bits on ±10 mV range
Vertical resolution, 14-bit mode
14 bits on most input ranges
13 bits on ±20 mV range
12 bits on ±10 mV range
14 bits
Enhanced vertical resolution
(PicoScope 6 software), 12-bit mode
Up to 16 bits on most input ranges
Up to 15 bits on ±10 mV range
Enhanced vertical resolution
(PicoScope 6 software), 14-bit mode
Up to 18 bits on most input ranges
Up to 17 bits on ±20 mV range
Up to 16 bits on ±10 mV range
Up to 18 bits
Input type Differential
9-pin D-subminiature, female
Maximum sampling rate (real time)
12-bit mode
1 channel: 400 MS/s
2 channels: 200 MS/s
3 or 4 channels: 100 MS/s
Maximum sampling rate (real time)
14-bit mode
1 channel: 50 MS/s
2 channels: 50 MS/s
3 or 4 channels: 50 MS/s
Maximum sampling rate (USB
streaming) 10 MS/s
Capture memory (real time) 256 MS shared between active channels
Capture memory (USB streaming) 100 MS (shared between active channels)
Maximum duration of capture at fastest
sampling rate (real time), 12-bit mode 500 ms
Maximum duration of capture at fastest
sampling rate (real time), 14-bit mode 5 s
Maximum waveform buffer segments 10000
Fastest real-time collection time,
12-bit mode 50 ns (5 ns/div)
Fastest real-time collection time,
14-bit mode 200 ns (20 ns/div)
Slowest real-time collection time 50000 s (5000 s/div)
Collection time accuracy ±50 ppm (5 ppm/year aging)
Sample jitter 3 ps RMS typical
ADC sampling Simultaneous sampling on all enabled channels
