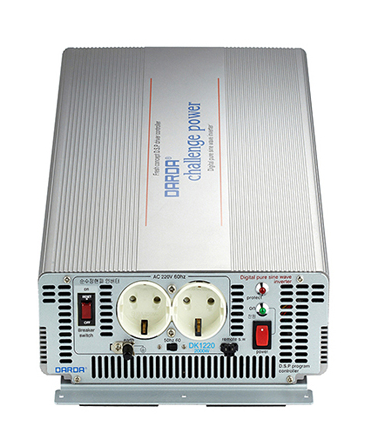

PNKHITECH DK1220 逆变器(12VDC / AC223,2000W,纯正弦波)

  • 制造商: PNKHITECH
    Model: DK1220
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture : PNKHITECH
Model : DK1220
Made in Korea
Warranty : 12 month

- DC input voltage:DC12V
- DC voltage standard: 13.4V
- AC voltage standard: AC223V
- Output power continuous: 2000W
- Surge rating: 4000w
- Effi ciency et rated power: 91%
- No load current: no fan: 1.39A
                         on fan: 1.84A
- Low battery shut down: 10.2V
- Low battery return on power: 11.2V
- High battery shut down: 17.2V
- High battery return on power: 15.2V
- Equency[50/60] selection: 60HZ
- Regulation: 2500W/222Vac
- Over temperature protection: -25℃ ~ +74℃
- Over temperature power on: 58℃
- Output wave form: Pure sine wave
- Cooling fan [auto fan]: Fan on temperature 40℃ (±0.5℃)
- Insulation transformer: 2KV ~ 2.5KV
- Over load protection:

Input senser: 10A
                      Input fuse: 40A(6EA)
                     Output sensor: 20A(Sensor)
                     Output circuit breaker: 10A(SS-001)
- AC outlet/terminal: 2P Outlet 16A
- FCC (EMC) / AC120V: FCC part 15 sub part B class A
- KC (EMC) / AC220V: MSP-REMpnk-DK1220

- Dimensions [W×H×D(mm)]: 225×89×440 mm
- Weight: 5.5kg
