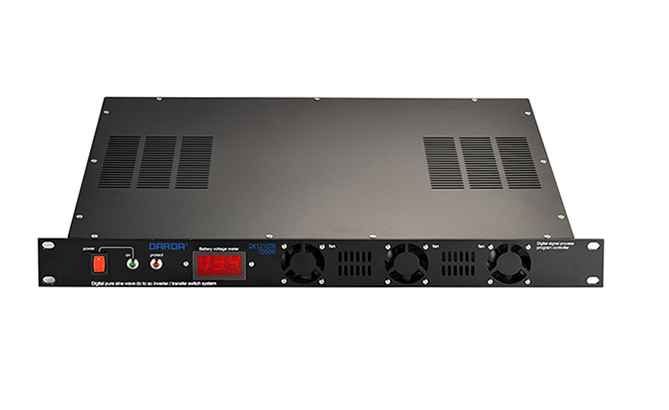

PNKHITECH DK1220TR 逆变器(13.4VDC / AC223,2kW,纯正弦波)

  • 制造商: PNKHITECH
    Model: DK1220TR
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture : PNKHITECH
Model : DK1220TR
Made in Korea
Warranty : 12 month

- DC input voltage:DC13.4V
- AC voltage no load: AC223V(±3%)
- Output power continuous: 2kW(±3%)
- Surge rating: 4000w(±3%)
- Effi ciency et rated power: 87%(±3%)
- No load current: no fan: 1.4A
                           on fan: 2.2A
- Low battery shut down: 10.2V(± 0.5V)
- Low battery return on power: 11.3V (± 0.5V)
- High battery shut down: 17.2V (± 0.5V)
- High battery return on power: 15.2V (± 0.5V)
- Equency[50/60] selection: 50hz/60hz selection (±0.8hz)
- Regulation: 2500W/220Vac
- Over temperature protection:-25℃ ~ 74℃ (78℃ ± 5℃)
- Over temperature power on: 58℃ (±5℃)
- Output wave form:Digital pure sine wave
- Cooling fan [auto fan]: Fan on temperature 40℃ (±5℃)
- Insulation transformer: 2KV ~ 2.5KV (±0.5KV)
- Over load protection:
                                 Input sensor: include
                                 Input fuse:40A (2EA)
                                 Output sensor: Included
                                 Output fuse or breaker: 10A(SS-001)
                                 AC outlet: 1P outlet 20A
- Transfer switch[inside]:
                                 DC input: 12V(10V~17V)
                                 Load current: 0.03A(30mA) / 220Vac
                                 Switching time: 16~18msec (program control)
- Dimensions [W×H×D(mm)]: 482 X 88 X 440 mm
- Weight:8.7kg
