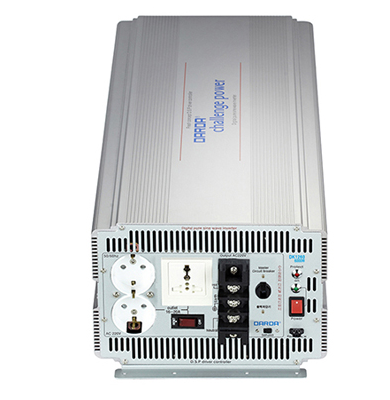

PNKHITECH DK1260变频器(12VDC / AC235,6000W,纯正弦波)

  • 制造商: PNKHITECH
    Model: DK1260
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture : PNKHITECH
Model : DK1260
Made in Korea
Warranty : 12 month

- DC input voltage:DC12V
- DC voltage standard: 13.4V
- AC voltage standard: AC235V
- Output power continuous: 6000W
- Surge rating: 12kw
- Effi ciency et rated power: 91%
- No load current: no fan: 2.4A
                           on fan: 4.28A
- Low battery shut down: 10.2V
- Low battery return on power: 11.2V
- High battery shut down: 17.2V
- High battery return on power: 15.2V
- Equency[50/60] selection: 60HZ
- Regulation: 6500W/222Vac
- Over temperature protection: -25℃ ~ +74℃
- Over temperature power on: 58℃
- Output wave form: Pure sine wave
- Cooling fan [auto fan]: Fan on temperature 40℃ (±0.5℃)
- Insulation transformer: 2KV ~ 2.5KV
- Over load protection:
                                Input senser: 100A
                                Input fuse: 40A(16EA)
                               Output sensor: 50A(Sensor)
                               Output circuit breaker: 30AH(DCP-PR)
                                                                 1 7A(SS-001)
AC outlet/terminal: 2P Outlet 16A / 1P-20A(EU-US)
                             3P-60A Terminal
- FCC (EMC) / AC120V: FCC part 15 sub part B class A
- KC (EMC) / AC220V: MSP-REMpnk-DK1250
- Dimensions [W×H×D(mm)]: 225×154×580 mm
- Weight: 12.3kg
