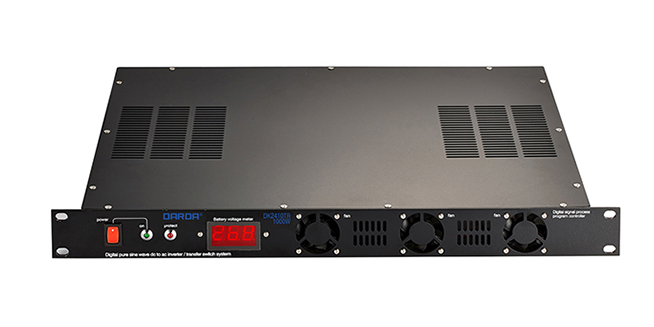

PNKHITECH DK2430TR 逆变器(26.8VDC / AC223,3kW,纯正弦波)

  • 制造商: PNKHITECH
    Model: DK2430TR
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture : PNKHITECH
Model : DK2430TR
Made in Korea
Warranty : 12 month

- DC input voltage:DC26.8V
- AC voltage no load: AC223V(±3%)
- Output power continuous: 3kW(±3%)
- Surge rating: 6kw(±3%)
- Effi ciency et rated power: 90%(±3%)
- No load current: no fan: 0.85A
                           on fan: 1.5A
- Low battery shut down: 20.2V(± 0.5V)
- Low battery return on power: 22.8V (± 0.5V)
- High battery shut down: 32.3V (± 0.5V)
- High battery return on power: 30.1V (± 0.5V)
- Equency[50/60] selection: 50hz/60hz selection (±0.8hz)
- Regulation: 3500W/220Vac
- Over temperature protection:-25℃ ~ 74℃ (78℃ ± 5℃)
- Over temperature power on: 58℃ (±5℃)
- Output wave form:Digital pure sine wave
- Cooling fan [auto fan]: Fan on temperature 40℃ (±5℃)
- Insulation transformer: 2KV ~ 2.5KV (±0.5KV)
- Over load protection:
                            Input sensor: Include
                            Input fuse:40A (5EA)
                            Output sensor: Included
                            Output fuse or breaker: 16A(SS-001)
                            AC outlet: 1 socket(20A)
- Transfer switch[inside]:
                           DC input: 24V(21V~30V)
                           Load current: 0.03A(30mA) / 220Vac
                           Switching time: 16~18msec (program control)
- Dimensions [W×H×D(mm)]: 482 X 88 X 530 mm
- Weight:10kg
