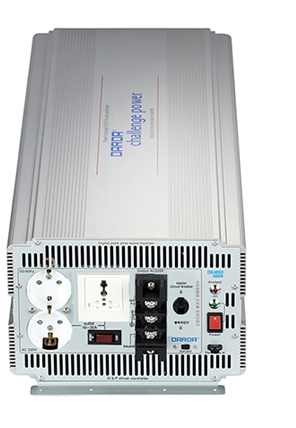

PNKHITECH DK4850 逆变器(48VDC / AC235,5000W,纯正弦波)

  • 制造商: PNKHITECH
    Model: DK4850
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture : PNKHITECH
Model : DK4850
Made in Korea
Warranty : 12 month

- DC input voltage:DC48V
- DC voltage standard: 53.6V
- AC voltage standard: AC235V(±3%)
- Output power continuous: 5000W(±3%)
- Surge rating: 10kw(±3%)
- Effi ciency et rated power: 91%(±3%)
- No load current: no fan: 0.62A
                           on fan: 1.12A
- Low battery shut down: 40.2V
- Low battery return on power: 42.5V
- High battery shut down: 60.9V
- High battery return on power: 58.8V
- Equency[50/60] selection: 50hz/60hz selection (±0.8hz)
- Regulation: 5000W/230Vac
- Over temperature protection:-20℃ ~ +78℃ (80℃ ±5℃)
- Over temperature power on: 58℃ (60℃ ±5℃)
- Output wave form: Pure sine wave
- Cooling fan [auto fan]: Fan on temperature 45℃ (±3℃)
- Insulation transformer: 2KV ~ 2.5KV (±0.5KV)
- Over load protection:
                                Input senser: Included
                                Input fuse: 40A (2EA) 30A (2EA)
                               Output sensor: Included
                               Output circuit breaker: 30A HS (High speed)
                               AC outlet/terminal: Universal outlet (20A)
                                                            terminal (60A-3P)
- FCC (EMC) / AC120V: FCC part 15 sub part B class A
- KC (EMC) / AC220V: MSP-REM-pnk-DK4850
- Dimensions [W×H×D(mm)]: 225×154×498mm
- Weight: 10.5kg
