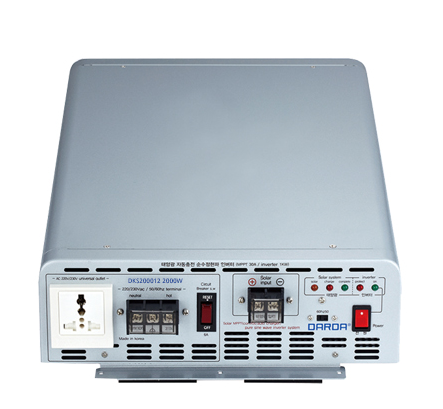

PNKHITECH DKS200012 逆变器(13.4VDC / AC223,2000W,纯正弦波)

  • 制造商: PNKHITECH
    Model: DKS200012
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture : PNKHITECH
Model : DKS200012
Made in Korea
Warranty : 12 month

- DC input voltage:DC12V
- AC voltage no load: AC223V(±3%)
- Output power continuous: 2000W (±5%)
- Surge rating: 4000W (±10%)
- Effi ciency et rated power: 88%(±3%)
- No load current: no fan: 1.39A
                           on fan:1.84A
- Low battery shut down: 10.2V(± 0.5V)
- Low battery return on power: 11.2V (± 0.5V)
- High battery shut down: 17.2V (± 0.5V)
- High battery return on power: 15.2V (± 0.5V)
- Equency[50/60] selection: 50hz/60hz selection (±0.8hz)
- Regulation: 2500W/220Vac
- Over temperature protection:-25℃ ~ 74℃ (78℃ ± 5℃)
- Over temperature power on: 58℃ (±5℃)
- Output wave form:Digital pure sine wave
- Cooling fan [auto fan]: Fan on temperature 40℃ (±5℃)
- Input fuse: 40A(6EA)
- Output sensor: 20A CT(Ts-7W)
- Output circuit breaker: 10A(SS-001)
- Solar MPPT Charger:
                 Input: System(battery) voltage: 12V
                           Maximum input Voltage (solar input): 50V (±3%)
                           Normal input power: 432W (± 15W)
                           No load loss: 30mA
            Charging: Maximum Charging current: 30A (±3A)
                           Charging System: Auto
                           Float Charging Voltage: 13.2V (25℃) (±3%)
                           Equalization Charging Voltage: 14.4V (25℃) (±3%)
                           Working temperature: -25℃ ~ 74℃ (78℃ ±5℃)
                           Dimensions [W×H×D(mm)]: 287x85x460 mm
                           Weight: 7.6Kg
