PNKHITECH DKS200024 逆变器(26.8VDC / AC223,2000W,纯正弦波)

  • 制造商: PNKHITECH
    Model: DKS200024
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

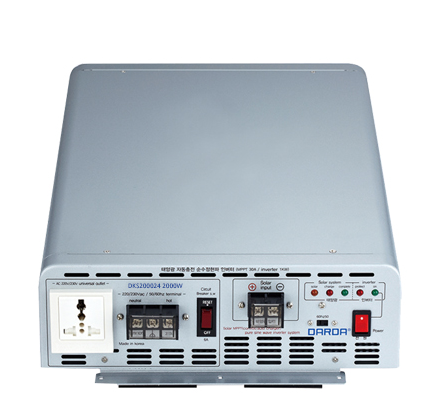

Manufacture : PNKHITECH
Model : DKS200024
Made in Korea
Warranty : 12 month

- DC input voltage:DC24V
- AC voltage no load: AC223V(±3%)
- Output power continuous: 2000W (±5%)
- Surge rating: 4000W (±10%)
- Effi ciency et rated power: 91%(±3%)
- No load current: no fan: 0.76A
                           on fan: 1.01A
- Low battery shut down: 20.1V(± 0.5V)
- Low battery return on power: 22.7V (± 0.5V)
- High battery shut down: 31.9V (± 0.5V)
- High battery return on power: 29.9V (± 0.5V)
- Equency[50/60] selection: 50hz/60hz selection (±0.8hz)
- Regulation: 2500W/220Vac
- Over temperature protection:-25℃ ~ 74℃ (78℃ ± 5℃)
- Over temperature power on: 58℃ (±5℃)
- Output wave form:Digital pure sine wave
- Cooling fan [auto fan]: Fan on temperature 40℃ (±5℃)
- Input fuse:40A(3EA)30A(1EA)
- Output sensor: 20A CT(Ts-7W)
- Output circuit breaker: 10A(SS-001)
- Solar MPPT Charger:
              Input: System(battery) voltage: 24V
                        Maximum input Voltage (solar input): 75V (±3%)
                        Normal input power: 864W (± 15W)
                        No load loss: 30mA
         Charging: Maximum Charging current: 30A (±3A)
                        Charging System: Auto
                        Float Charging Voltage: 26.4V (25℃) (±3%)
                        Equalization Charging Voltage: 28.8V (25℃) (±3%)
                        Working temperature: -25℃ ~ 74℃ (78℃ ±5℃)
                        Dimensions [W×H×D(mm)]: 287x85x460 mm
                        Weight: 5.6Kg
