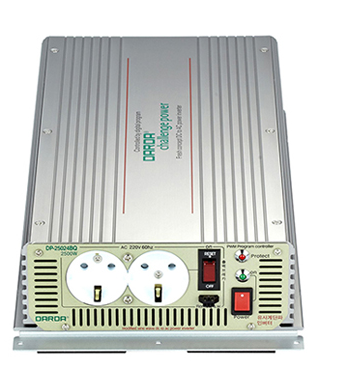

PNKHITECH DP-25024BQ 逆变器(24VDC / AC228V,2500W,修正正弦波)

  • 制造商: PNKHITECH
    Model: DP-25024BQ
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufactuter : PNKHITECH
Model : DP-25024BQ
Made in Korea

SPECIFICATIONS
DC input voltage : 24V
DC voltage standard : 26.8V
AC voltage standard : AC228V
Max output power time 15~16min : 2500W
Output power continuous : 2000W
Surge rating : 5000W
Effciency et rated power : 91%
Effciency et max power : 88%
THD [max] : 25%
No load current : no fan : 0.36A
on fan : 0.60A
Low battery shut down : 20V
Low battery return on power : 22.4V
High battery shut down : 31.0V
High battery return on power : 28.0V
Over temperature protection : -25 °C ~ +76 °C
Over temperature power on : 58 °C
Output wave form : Fan on temperature 41 °C(±3 °C)
Dimensions [W×H×D(mm)] : 202×71×385
Weight : 3.3kg

详细

MANUAL
