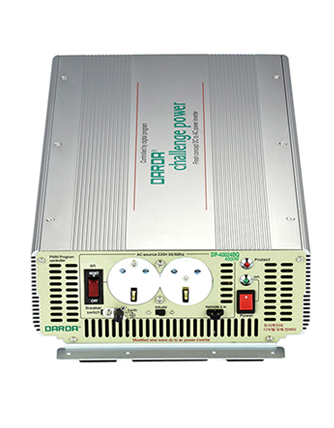

PNKHITECH DP-40024BQ 逆变器（24VDC / AC228V，4000W，修正正弦波）

SPECIFICATIONS
DC input voltage : 24V
DC voltage standard : 26.8V
AC voltage standard : AC228V
Max output power time 15~16min : 4000W
Output power continuous : 3200W
Surge rating : 8000W
Effciency et rated power : 91%
Effciency et max power : 88%
THD [max] : 25%
No load current : no fan : 0.40A
on fan : 0.82A
Low battery shut down : 20V
Low battery return on power : 22.4V
High battery shut down : 31.0V
High battery return on power : 28.0V
Over temperature protection : -25 °C ~ +76 °C
Over temperature power on : 58 °C
Output wave form : Fan on temperature 41 °C(±3 °C)
Dimensions [W×H×D(mm)] : 225×89×514
Weight : 4.9kg
