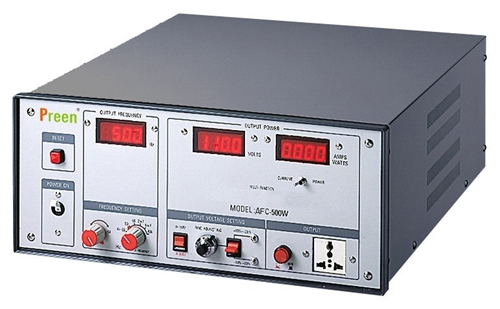

Preen AFC-500W 交流电源(0.5kVA)

  • 制造商: Preen
    Model: AFC-500W
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufactuter : Preen
Model : AFC-500W
Made in Taiwan:

SPECIFICATIONS
Power (kVA) : 0.5kVA
Circuit Type : Transistor amplifier type

INPUT :
Phase : Single
Wave : Sine
Voltage : 120V,220V or 277V ± 15%
Frequency Range : 47-63 Hz
Power Factor : 0.85

OUTPUT
Phase : Single
Wave : Sine
Voltage : Low : 0V~150.0V L-N / High : 0V~300.0V L-N
Frequency Range : : 47-63 Hz; 2F, 4F, 400Hz ( Option )
Frequency Regulation : ≦ 0.01 %
Dòng tối đa : 2.1/4.2
Line Regulation : <0.5%
Load Regulation : ± 0.5% (Resistive Load)
THD : ≦ 0.5% (Resistive Load)
Efficiency : ≧ 70%
Response Time : ≦ 50us
Crest Factor : 1.4: 1
Protection : OVP, UVP, OCP, OPP, OTP and Short Circuit Protection

Indicator :
Voltage : 0-600V
Resolution: 0.1V
Accuracy: 0.15% F.S. + 4 Counts
Current : A
Range : 0-700A
0.01A ( ≦ 100A)
0.1A ( > 100A)
Accuracy: 0.2% F.S.+ 4 Counts
Power : W
Range : 0-75kW
0.01kW ( ≦ 10kW)
0.1kW ( > 10kW)
Accuracy: 0.3% F.S.+ 4 Counts
Frequency : 0-999.9Hz
Resolution: 0.1Hz;
Accuracy: 0.1%

Insulation Resistance : > DC500C 10MΩ
Withstand voltage insulation :AC 1800V 10mA/1min
Cooling system : Fan
Opertional Temp. : 0-45 độ C
Humidity : 0-90%
Altitude : < 1500m
Dimensions (HxWxD) :430x520x200
Weight(kg): 44kg
