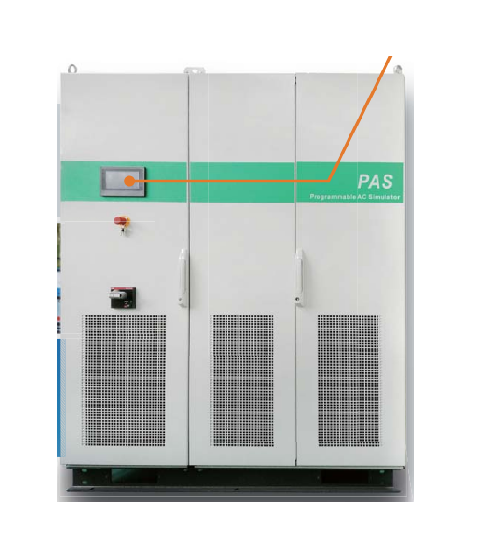

Preen PAS-F-33075网格模拟器(75kVA)

  • 制造商: Preen
    Model: PAS-F-33075
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufactuter : Preen
Model : PAS-F-33075
Made in Taiwan

SPECIFICATIONS
Power (kVA) : 75kVA
Circuit Type : IGBT type

AC INPUT :
Phase : Three phase
Voltage : 220V/380V ± 15%
Frequency Range : 47-63 Hz
Power Factor : 0.99
ITHD : ≤ 5% ( typical Value )

AC OUTPUT
Phase : Three phase
Voltage : 0V~300.0V L-N
Frequency Range : : 45-65 Hz;
Frequency Stability : ≤0.01 %

Performance
Line Regulation : <1% (Resistive Load)
Load Regulation : ± 1% (Resistive Load)
Output THD : <2% (Resistive Load)
Efficiency : ≥ 92%
Response Time :≤ 2ms
Crest Factor : 3: 1
Regenerative Function : Yes

Display
Type : 7" Touch Panel
Voltage : 0.2V+ 0.1%FS
Resolution: 0.1V
Current : 0.2A+ 0.1%FS
Resolution: 0.1A
Frequency : 0.01Hz+ 0.01%FS
Resolution: 0.01Hz
Real Power : 0.2kW+ 0.1%FS
Resolution: 0.1kW
Apparent Power : 0.2kVA+ 0.1%FS
Resolution: 0.1kVA
Power Factor : ± 0.01 Resolution: 0.01
Communication Interface : RS232 or RS485 ; GPIB, LAn, USB ( optional )

Environment
Insulation Resistance : > DC500C 10MΩ
Withstand voltage insulation :AC 2000V 10mA/1min
Cooling system : Fan
Opertional Temp. : 0-45 độ C
Humidity : 0-90%
Altitude : < 1500m
Dimensions (HxWxD)mm :1200x800x2100
