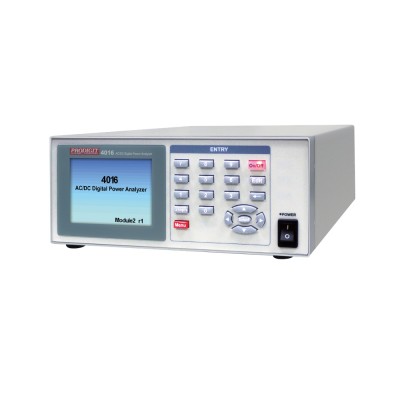

Prodigit 4016 AC/DC数字功率分析仪(800Vp,20Arms / 200Ap)

  • 制造商: PRODIGIT
    Model: 4016
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 42,300,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer:  Prodigit Electronics-Taiwan

Model: 4016

Warranty: 12 months


Voltage Ranges:

20Vpeak /0.001V,40Vpeak /0.001V,80Vpeak /0.01V

200Vpeak /0.01V,400Vpeak /0.01V,800Vpeak /0.1V

18 Selectable Current Ranges:

0.002Apeak / 0.1uA

0.004Apeak / 0.1uA

0.008Apeak / 0.001mA

0.02Apeak / 0.001mA

0.04Apeak / 0.001mA

0.08Apeak / 0.01mA

0.2Apeak / 0.01mA

0.4Apeak / 0.01mA

0.8Apeak / 0.1mA

2Apeak / 0.1mA

4Apeak / 0.1mA

8Apeak / 0.001A

10Apeak / 0.001A

20Apeak / 0.001A

40Apeak / 0.001A

50Apeak / 0.001A

100Apeak / 0.01A

200Apeak / 0.01A

Voltage/Current Frequency Range : DC, 20~1000HZ

Input Range: up to 800Vpeak / 200Apeak

Current resolution: 0.1uA

Display: 3.5-inch color LCD digital numeral and graphic (TFT) display

Data Logger mode:

- Up to 256 records for Vrms / Arms / Watt / PF / VTHD

measurements

- External PC for no-limit records q'ty for long-term quality

monitoring

- Built-in power switch to control

- Inrush Current and Voltage measurement

- Optional Interface:GPIB、RS232、USB、LAN


详细

Datasheet
