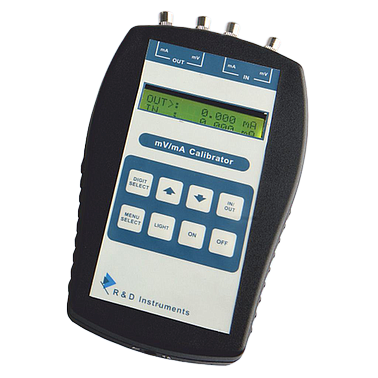

R&D Instrument mV / mA 回路校准器

  • 制造商: R&D Instrument Services
    Model: mV / mA
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: R&D Instrument Services
Model: mV / mA
Origin: India
Warranty: 12 months

Application:
Ideal for calibrating indicators, controllers, transmitters,
receivers and mA/mV measuring instruments.
Current Terminal Input
Protection : Fuse: 100mA / 250V
Backlight : LED backlight
Power supply : Li-ion Rechargeable Battery
Low Battery Indicator : Yes
Battery backup : 40 hours @ no load condition
11 hours @ 20mA with 850 ohm load
Loop power supply : 24V ±10%
Operating Temperature : 10 to 50°C
Instrument Casing : ABS Plastic
Instrument Dimensions : 180 mm x 110 mm x 35 mm (LxWxD)
Instrument Weight : 350 gms
MEASURE Mode
mA: Range: 0 to 25; Resolution: 0.001 (mA); Accuracy: ±0.025% of Reading + 10µA
mV: Range: 0 to 200; Resolution: 0.001 (mV); Accuracy: ±0.025% of Reading + 10 µV
SOURCE Mode
mA: Range: 0 to 25; Resolution: 0.001 (mA); Accuracy: ±0.025% of Reading + 10µA
mV: Range: 0 to 200; Resolution: 0.001 (mV); Accuracy: ±0.025% of Reading + 10 µV
Standard Delivery
1. Instrument : 1 no.
2. Carrying Pouch : 1 no.
3. Test Lead (2 wire) : 2 nos.
4. Charger : 1 no.
5. User Manual : 1 no.
6. Traceable Calibration Certificate
Optional:
Accredited (NABL) Calibration Certificate as per ISO/IEC 17025:2005 Standard
