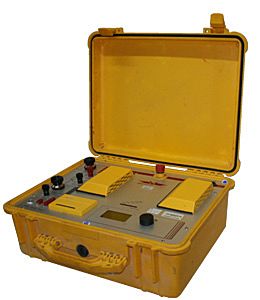

Raytech Micro-Centurion II 精密微欧姆表200A(200A)

  • 制造商: RAYTECH
    Model: Micro-Centurion II
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Raytech
Model: Micro-Centurion II
Origin: Switzerland
Warranty: 12 months

Specifications
- Size L: 521 mm (20.5”) W: 432 mm (17”) H: 216 mm (8.5”)
- Weight 14.4 kg (31.5 lbs)
- Input Power 100 to 250 VAC, 50/60 Hz, auto ranging
- Output Power 1000 Watt
- Test Current user selectable: 200, 100, 50, 20, 10 A DC
- Panel Display: LCD graphic with back light
- Front Panel Sealed, Anodized with a multi-actuation rotary knob
- Interface: 9 Pin RS232 serial / 25 Pin Centronics parallel
- Internal panel mount printer
- Memory Storage: Internally stores up to 2 000 test results
- Temperature Operating –10°C to +60°C, Storage –20°C to +70°C

Measurement Parameters
- Current Range/ Measuring Range/ Accuracy/ Resolution
200A/ 0.00 µΩ...20 mΩ/ ±0.1% Rdg/ ±0.01 µΩ/ 5 Digits or 0.01 µΩ
100A/ 0.00 µΩ...40 mΩ/ ±0.1% Rdg/ ±0.02 µΩ/ 5 Digits or 0.02 µΩ
50A/ 0.00 µΩ...100 mΩ/ ±0.1% Rdg/ ±0.04 µΩ/ 5 Digits or 0.05 µΩ
20A/ 0.0 µΩ...1.0 Ω ±/ 0.1% Rdg/ ±0.1 µΩ/ 5 Digits or 0.1 µΩ
10A/ 0.0 µΩ...5.0 Ω ±/ 0.1% Rdg/ ±0.2 µΩ/ 5 Digits or 0.2 µΩ
- Resistance Range: 0.00µΩ to 5Ω
- Measuring duty cycle: 200A 10min. on, 2min. off; 100A and below continuous

Accessories:
- Cable Bag
- Current Cables 2 x 5m
- Potential Cables 2 x 5m
- Power Cord depending on country of distribution
- Instruction Manual
- 2 Paper Rolls
- Toolbox Software for Data Exchange

详细

Datasheet

Manual
