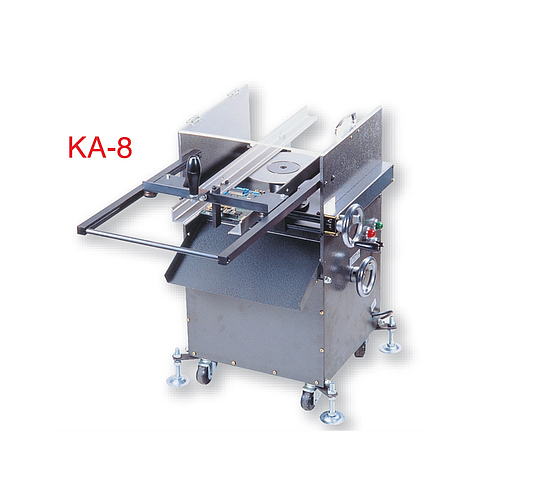

RenThang KA-8 手动式电路板切脚机

  • 制造商: REN THANG
    Model: KA-8
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: RenThang

Model: KA-8

Origin: Taiwan

Warranty: 12 months


Dimension:1050(L) x 570(W) x 750(H) m/m

Power:110/220V 50/60HZ

Net Weight:73Kgs

Thickness Range:0.8 - 1.2 & 1.6 - 2.0mm

RPM of Spindle:4500

Min. Lead Height:1.0mm Min

MAX.PCB Working Size:400mm(L) x 270mm(W)

详细

FEATURES:

The machine is designed to trim the wire leads of PCB assembly after soldering proces.

The fast turning tungsten carbide blade cuts the wire leads while feeding the PCB one by one to the equipped track manually.

For safety, it is absolutely required to push the PCB assembly by handle.

This machine is for trimming the wire lead of electronics components only.

The Tungsten Carbide Blade is excluded in the machine.
