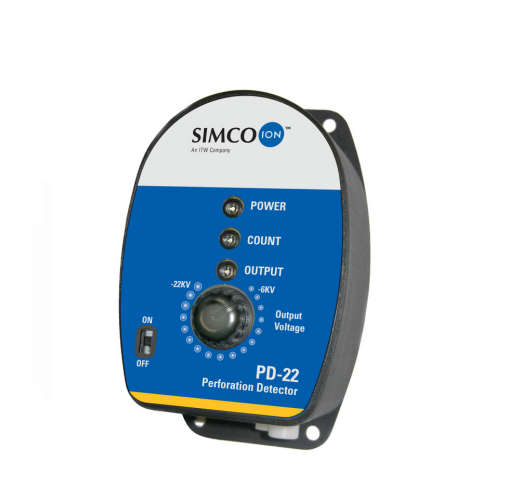

SIMCO PD-22 穿孔探测器

  • 制造商: SIMCO
    Model: PD-22
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: SIMCO

Model: PD-22

Warranty: 12 months


Input Power: 24VDC, 0.6 A, 14W (Max.)

Output Voltage Range: 2 to 22kVDC (Negative Polarity)

Output Current: 1mA (Max, Single Port Powered)

Detector Output: 15ms Pulse

Switching Current (IF) 60mA

Detector Frequency: 5Hz Max.

Operating Temperature: 32°F (0°C) to 122°F (50°C)

Status Indicators:

Power: Green LED

Count Control: Yellow LED

Output Voltage: Blue LED

Interface Connections: (12) Position Terminal Block

Enclosure: Glass Reinforced Polycarbonate

Overall Dimensions: 6.10" L x 3.79" W x 3.10"D (154.9mm L  x 96.3mm W x 78.7mm D)

Weight: 1.55 lb (0.70 kg)

Universal AC Adapter: 100-240 VAC Input /24VDC, 1.66 A Output

Compliant: RoHS

详细

Datasheet
