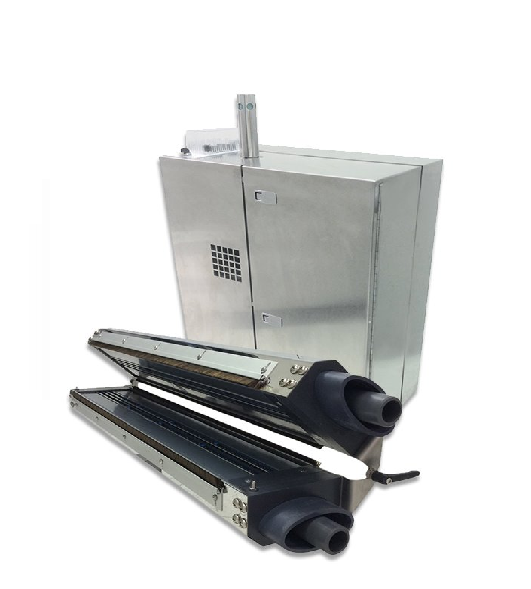

SIMCO V-Force 30 纸带清理

  • 制造商: SIMCO
    Model: V-Force 30
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: SIMCO

Model: V-Force 30

Warranty: 12 months


Hood Specifications

Max Web Speed: 2,000 ft/min, 610 m/min

Max Web Width: 30", 762 mm

Min Web Thickness: 1 ml

Duct Connections: 3" coaxial vacuum/blow off

Static Control Active: 110/240 VAC, 50/60 Hz

Mounting: Four 1/4 -20 thread

Standard Opening:manual with end hinges

Turbines: 6 motors - 80" h20 lift

Hood Widths: 6,12,18,24,30 inches

Air Control System (ACS) Specifications

Max Amperage: 230 V, 3-phase at 20A

Decibel Rating: <70 dB at full operating speed

Remote Access: Remote on/off from PLC

Blow Off: Dedicated Blow off turbine with 2 micron filtration

Hose Diameter: 3" outer, 1.25" inner

Dimensions: 32"L x 22"W x 49"H

Turbines: 6 motors - 80" H20 lift

 Vacuum and Blow Off Force: 400 cfm vac; 200 cfm blow-off
