Warranty: 12 months
Measuring Range: 0～90 mm
Graduation: 0.1 mm
Indication Error: ±0.1 mm
Maximum Measuring Depth: 125 mm
Measuring Force: ≤ 5 N
Weight: 560 g

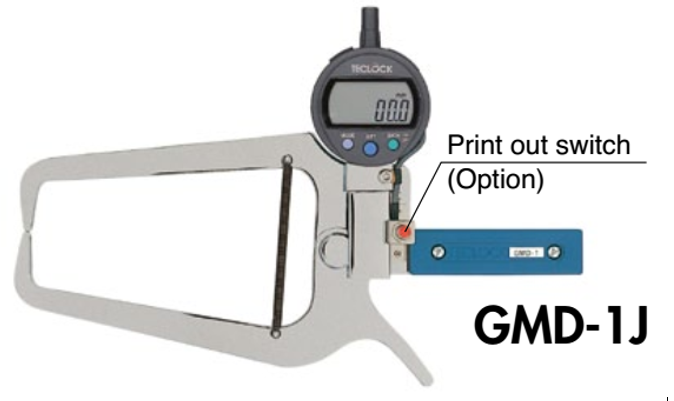

• External dimension measuring instrument of which digital gauge is built into frame. This can treat statistics data and print out it by connecting it to the optional exclusive printer SD-765P (Please refer to page 30).
• It is possible to equip print out switch (Option).
