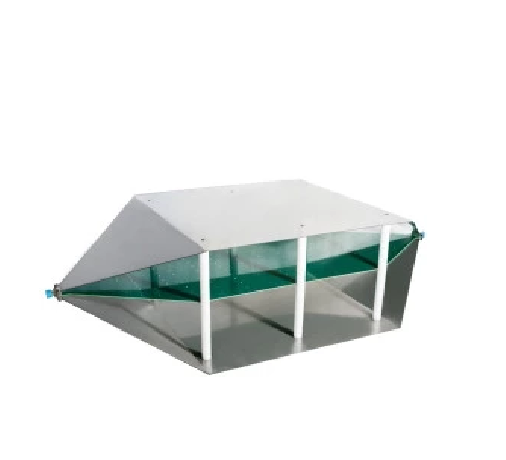

Tekbox TBTC3 开放式TEM测试单元

  • 制造商: Tekbox
    Model: TBTC3
    保障: 12 month
    • 报价要求 报价要求
  • 25,824,150 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Tekbox

Model: TBTC3

Warranty: 12 months


TEM cell dimensions:

Length: 1038 mm

Width: 501 mm

Height: 305 mm

Septum height: 150 mm

TEM cell connectors: N-female

Nominal cell impedance: 50 Ohm

Wave impedance: 377 Ohm

Maximum RF input power: 25W

Input return loss: S11 up to 700 MHz < -16dB

Transmission loss: up to 730 MHz < 3 dB

DC-Block 50V-6GHz-N

Connectors: N-Male/Female

Nominal impedance: 50 Ohm

Max. continuous RF power: 2W

Max. continuous RF voltage: 50V RMS

Frequency: 500kHz to 6 GHz

VSWR: ≤ 1.2

RF-Termination 50Ω-3GHz-25W-N

Connector: N-Male

Nominal impedance: 50 Ohm

Max. continuous RF power: 25W

Frequency: DC to 3 GHz

VSWR: ≤ 1.2

Third order intermodulation: ≤ 120 dBc
