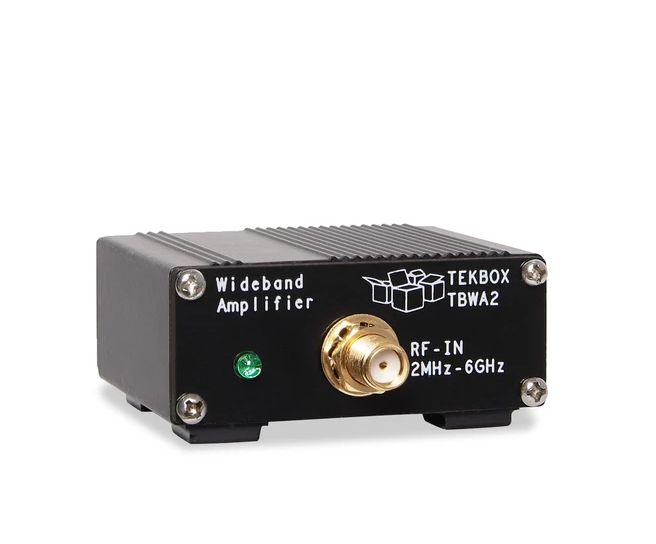

Tekbox TBWA2 / 20dB 宽带放大器 20dB

  • 制造商: Tekbox
    Model: TBWA2/20dB
    保障: 12 month
    • 报价要求 报价要求
  • 4,885,650 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Tekbox

Model: TBWA2/20dB

Warranty: 12 months


Input: 50 Ohm, SMA

Output: 50 Ohm, SMA

Nominal supply Voltage: 4.5 - 5V, typ. 110mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: +10dBm

1dB output compression point @ 2GHz: +20dBm

3rd order output intercept point @ 2GHz, Pin = 0dBm/tone, Δf = 10MHz: +35dBm

Reverse isolation S12, 0.1 …6GHz: 23dB

Noise Figure @ 2GHz: 4.5 … 5 dB

Gain:

1 MHz:  14.8 dB

10 MHz: 20.2 dB

100 MHz: 20.2 dB

500 MHz: 20 dB

1 GHz: 19.8 dB

2 GHz: 19 dB

3 GHz: 17.6 dB

4.5 GHz: 17.4 dB

6 GHz: 15.4 dB
