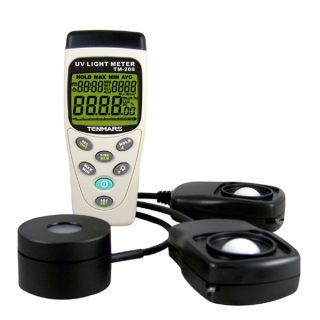

Model : TM-208
Warranty : 12 months
- 3 3/4 digits backlit LCD with max. reading 3999.
- 3 in 1 design, UV Power, Solar Power and Illumination(light) measurement.
- USB datalogging capacity: 45,000 records.
- Real time clock with calendar.
- Rel (relative) function / Zero Adjustment
- Highly reliable direct reading Instrument designed expressly for measuring light intensity at
the wafer plane of mask aligners.
- UV curing light sources, and any other UV light source.
Solar Power Features:
- The accuracy is +/-3% at 1,000 Watts/m2 .
- Solar power research.
- Physics and optical laboratories.
- Just point the calibrated PV cell at the sun and read the irradiance in Watts/m2 or Btu/ft2.h.
- It's great for those who test PV modules or arrays in the field.
- According to JISC1609: 1993 and CNS 5119 general A class spec.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Silicon photodiode and filter. Cosine angular corrected.
