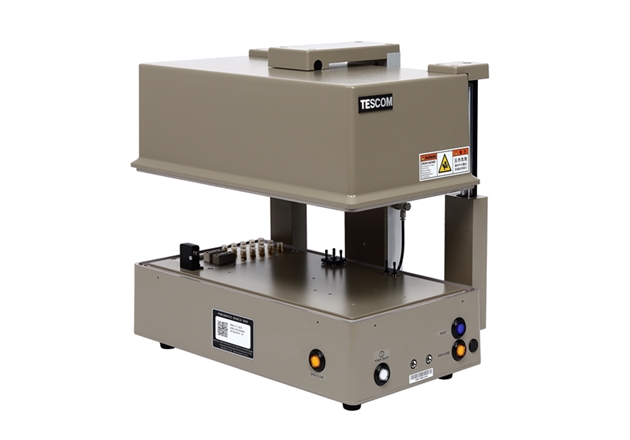

TESCOM TC-5901C 屏蔽箱

  • 制造商: Tescom
    Model: TC-5901C
    来源: Korea
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: TESCOM

Model:  TC-5901C

Origin: Korea

Warranty: 12 months


◈ Mechanical Specifications

※ Line voltage : 100 - 240 VAC, 50/60 Hz, 15 watt max.

※ Data Line capacity : 100 VDC, 5 Amps max.

※ Remote control : RS-232C, 3 wire, DB9(s)

※ Air connection

- Main connector : 6 mm OD hose, one-touch push-on fitting

- Fixture control connector connector : 4 mm OD hose, one-touch push-on fitting

- Input air pressure : 5 to 10 bar

※ Dimension

- Inside : 407(W) x 206(D) x 133(H) mm

- Outside: 459(W) x 300(D) x 300(H) mm, lid closed.  449(H) mm, lid open.

※ Weight : Approx. 17 kg

※ Packing (The size or weight of a package may vary on how to pack a package.)

- Size :  620(W) x 430(D) x 440(H) mm

 - Weight : Approx.21kg

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 60 dB

- 3000 to 6000 MHz : > 50 dB

详细

Datasheet


Manual


- Key Features

◈ High RF Shielding

◈ Pneumatic control of lid open-close and optional automatic test fixture motions

◈ EMI filters on all data ports and power line

◈ Remote operation by RS-232C

◈ Modular I/O design for possible customization of data and RF connection

◈ Fixture control air outputs for custom test fixture

◈ Narrower side front

◈ Provide shield protective cover for safety.

◈ Red and Green LED’s for Pass/Fail indication

◈ Dual pressure control and Lid Down Sensor for safety

◈ CE compliant : EN 292-1:1991, EN 292-2:1991/A1:1995, EN 983:1996, EN 1050:1996, EN60204-1:1997

- Dimension

TC-5901C Inner Dimension


TC-5901C Outer Dimension
