TESCOM TC-5932A 波浪试验箱

  • 制造商: Tescom
    Model: TC-5932A
    来源: Korea
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: TESCOM

Model: TC-5932A

Origin: Korea

Warranty: 12 months


◈ Mechanical Specifications

TC-5932A

Dimensions

- Inside : 369(W) x 313(D) x 240(H) mm

- Outside : 416(W) x 400(D) x 293(H) mm

- Door : 361(W) x 258(H) mm

Weight : Approx. 14 kg

Packing (The size or weight of a package may vary on pack a package.)

- Size : 680(W) x 640(D) x 440(H) mm

- Weight : Approx. 20 kg

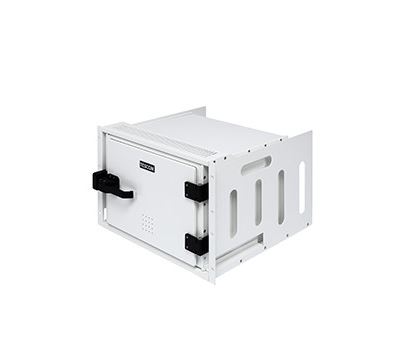

TC-5932A Rack Mount Set (19" Rack Optional)

Dimensions

- Inside : 369(W) x 313(D) x 240(H) mm

- Outside : 483(W) x 488(D) x 310(H) mm

- Door : 361(W) x 238(H) mm

Weight : Approx. 21 kg

Packing (The size or weight of a package may vary on pack a package.)

Size : 680(W) x 640(D) x 440(H) mm

Weight : Approx. 27 kg

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectiveness (dB)

- 100 to 2000 MHz : > 70 dB
- 2000 to 3000 MHz : > 70 dB
- 3000 to 6000 MHz : > 60 dB
详细

Datasheet


Key Features

◈ High RF Shielding

◈ Easy Opening/Closing of lid

◈ EMI filters on all Data and DC lines

◈ Customizable Data connections

◈ TC-5932A Rack Mount Set : TC-5932A 1 EA + 19” Rack Mounting Bracket

◈ Dimensions

TC-5932A Inner Dimension














TC-5932A Outer Dimension
TC-5932A Rack Mount Set Outer Dimension
