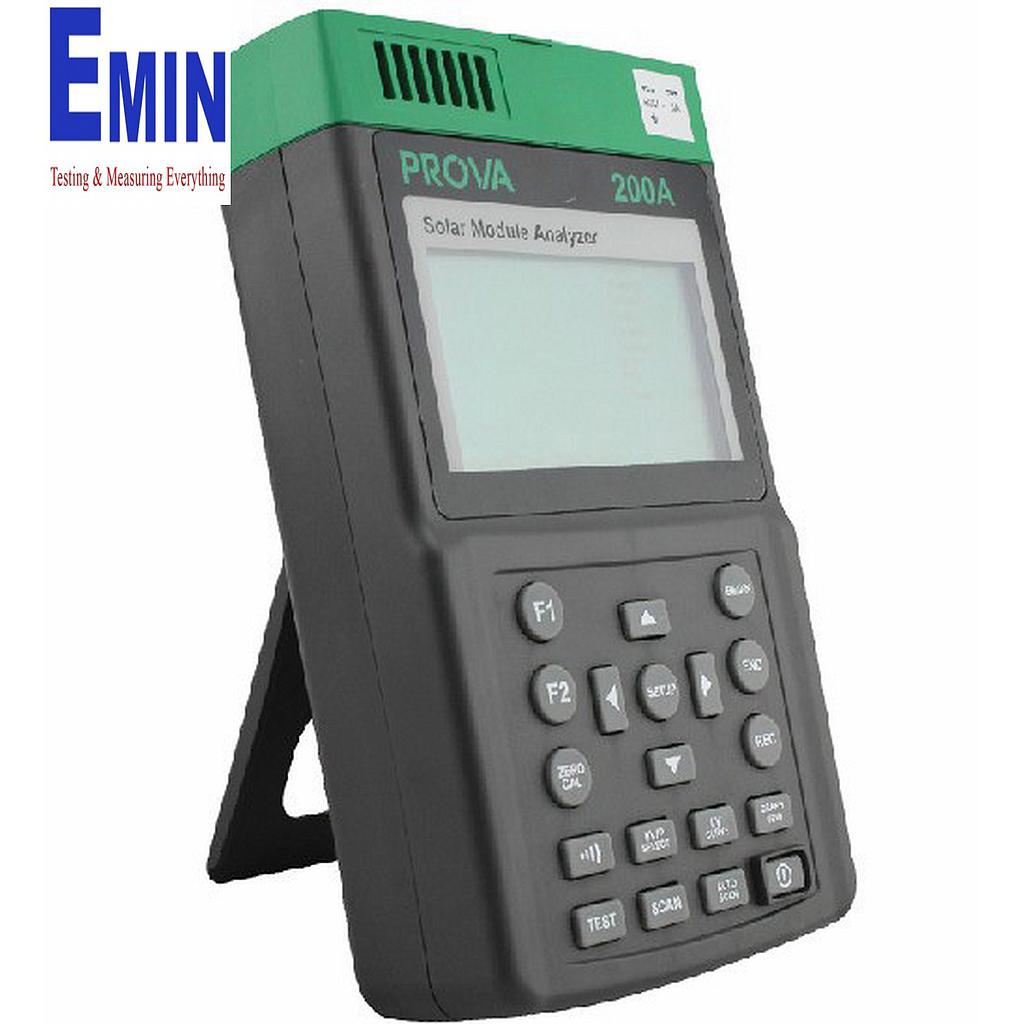

TES Prova 200A PV分析仪(光伏IV曲线测试仪)

  • 制造商: TES
    Model: Prova 200A
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: TES
Model: Prova 200A
Original: Taiwan

-Features: I-V curve test for solar panel/module
-Max. solar panel power (Pmax) search by auto-scan: 60V, 6A
-Best Resolution: 1mV, .01mA
-Manual single point I-V test
-Max. voltage (Vmaxp) at Pmax
-Max. current (Imaxp) at Pmax
-Voltage at open circuit (Vopen)
-Current at short circuit (Ishort)
-I-V Curve with cursor to display each data point
-Efficiency (%) calculation of solar panel
-Solar panel area setting: 0.001m2 ~ 9999m2
-Standard light source setting: 10W/ m2 ~ 1000W/ m
-Communicate with PC with USB cable
-Min. power setting for alarm function
-Built-in calendar clock
-Built-in battery charging circuit
-Rechargeable lithium batteries and AC adaptor
-Memory Size: 100 records
- Large LCD with backlight
Application:
- Quality Control in the production line, warehouse, or site of installation
- Identify the solar power system requirement
- Maintenance of solar panels
- Verify the best installation angle of solar panels
