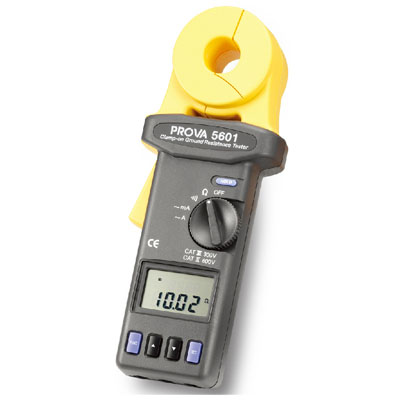

TES Prova 5601钳形接地电阻测试仪

  • 制造商: TES
    Model: Prova 5601
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: TES
Model: TES-3092
Original: Taiwan

- Non-Contact Ground Resistance Measurement
- No Auxiliary Electrode Needed
- Jaw Diameter 23mm
- 0.2mA~30A True RMS
- 116 Sets of Memory
- Programmable High and Low Alarm
- Programmable Data Logging
- Data Logging interval:1 to 255 sec
- Ground Resistance:
- 0.025~0.250/0.251~1.000/ 1.001~10.00/10.01~50.00/ 50.01~100.0/100.1~200.0/ 200.1~400.0/400.1~600.0/ 600.1~1500
- Ground/Leakage Current: (50/60Hz, True RMS ) 0.300~1.000/1.00~10.00/ 10.0~100.0/100~1000mA/ 0.20~4.000A/ 4.00~30.00A


详细

Datasheet/ Catalogue

Non-Contact Ground Resistance Measurement 0.2mA– 30A(5601)0.2mA– 35A(5637),True RMS
No Auxiliary Electrode Needed 116 Sets of Memory(5601,5637)
Jaw Diameter Φ 23 mm (5601) Programmable Hi and Lo Alarm(5601,5637)
Jaw Diameter Φ 35 mm(5637) Programmable Data Logging (5601,5637)
0.025 – 1500 Ohm
Accuracy of Resistance Calibration Plate ±0.5%
Data Logging Capacity 116 records
Data Logging Interval 1 to 255 seconds
Conductor Size 35mm /1.38”(5637), 23mm /0.90”(5600,5601)
Jaw Opening 38mm /1.49”(5637), 27mm /1.06”(5600,5601)
Battery Type 9V IEC 6 LR61 (Alkaline)
Display Type 4 digits 9999 counts LCD
Overload Indication OL
Battery Life 3000 measurements
Low Battery Indication
Range Selection Auto
Power Consumption 40mA
Sampling Time 0.5 seconds
Operating Temperature 0 ℃ to 50 ℃ (14 ℉ to 122 ℉ ) Operating Humidity: Less than 85% RH
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 122 ℉ ) Storage Humidity: Less than 75% RH
Dimension( 5600,5601 ) 257mm (L) x 100mm(W) x 47mm(H),10.1" (L) x 3.9"(W) x 1.9"(H)
Weight( 5600,5601) 640g/1.41lbs
Accessories Resistance Calibration Plate x 1
Battery 9V (Installed) x 1
Carrying Box x 1
Users Manual x 1
