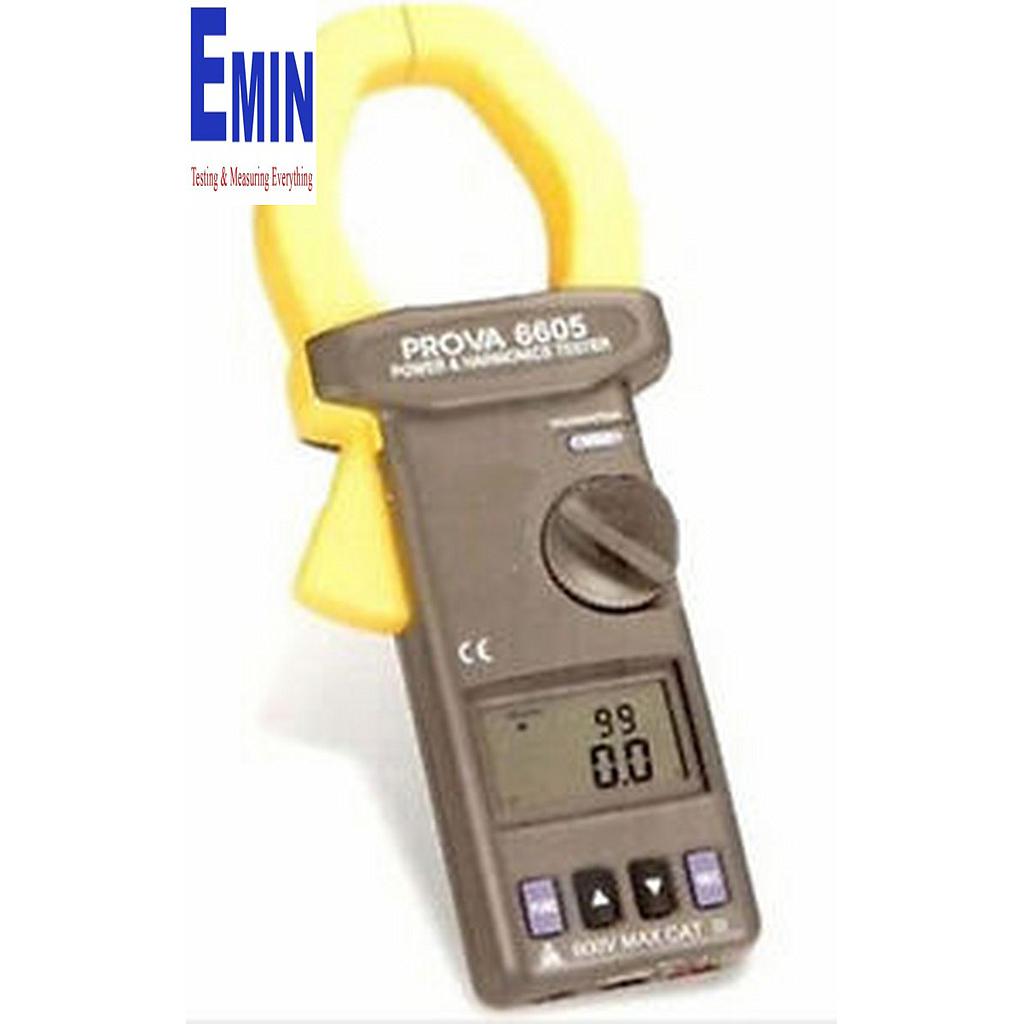

TES Prova 6605 交流电力谐波分析仪 (三相)

  • 制造商: TES
    Model: Prova 6605
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: TES
Model: Prova 6605
Original: Taiwan

-Active (W, KW, HP), reactive (VAR, KVAR) and apparent (VA, KVA) power
-Power factor (PF), phase angle (Φ ), and energy (WH, KWH)
-Non-interrupted AC current harmonic analysis
-1 to 99th order of harmonics at 2.0% basic accuracy
-Total harmonic distortion (%THD-F) and crest factor (CF)
-True RMS measurement of V and A
-Fast peak function (39 µs for 50Hz, 33µs for 60Hz)
-Resistance and Continuity with Beeper
-Measurement of balanced 3 Φ power
-Measurement of balanced 3 Φ sequence
-Programmable CT ratio from 1~ 250
-Max, Min and data hold functions.
-Active power in H.P.
-Auto power off function in 30 minutes: 0~1,500A AC Watt
Range: 10.0W~9999KW
Accuracy: +/- 2% +/-20dgts
-AC Current
Range: 10.0 ~ 1500.0A
Accuracy: +/- 2% +/- 5dgts
-AC Voltage
Range: 10.0V~600.0V
Accuracy: +/- 0.5% +/- 5dgts
-Harmonics of AC Voltage in Percentage
Range: 1st~99th ; Accuracy: +/-2%
-Harmonics of AC Current in Percentage
Range: 1st~99th ; Accuracy: +/- 2%
-Power Factor (PF)
Range: 0.000~1.000 ; Accuracy: +/- 0.04
-Phase Angle (Φ )
Range: -180 °~180 °/ 0 ° ~360 °
Accuracy: +/- 2
-Total Harmonic Distortion
Range: 0.0~999.9% ; Accuracy: +/- 2%
