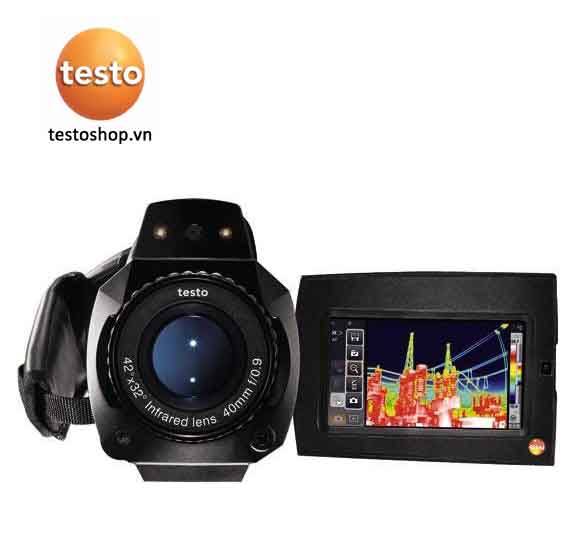

Testo 890-1 红外热像仪(640 x 480像素)

  • 制造商: TESTO
    Model: 890-1
    来源: Germany
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Testo

Order No.: 0563 0890 V1

Model:  890-1

Origin: German

Warranty: 12 months


Infrared image output

Focus: auto / manual

Infrared resolution: 640 x 480 pixels

Image refresh rate: 33 Hz

SuperResolution (IFOV): 0.71 mrad (Standard lens), 0.43 mrad (25° lens), 0.26 mrad (Telephoto lens), 0.11 mrad (Supertele)

SuperResolution (Pixel): 1280 x 960 pixels

Geometric resolution (IFOV): 1.13 mrad (Standard lens), 0.68 mrad (25° lens), 0.42 (Telephoto lens), 0.18 (Supertele)

Minimum focus distance: 0.1 m (Standard lens), 0.2 m (25° lens), 0.5 m (Telephoto lens), 2 m (Supertele)

Field of view: 42° x 32° (Standard lens), 25° x 19° (25° lens), 15° x 11° (Telephoto lens), 6.6° x 5° (Supertele)

Thermal sensitivity: ˂ 40 mK at +30 °C

Spectral range: 7.5 to 14 µm

Image output visual

Minimum focus distance: 0.5 m

Image size :3.1 MP

Image presentation

Display option: IR image / real image

Colours: 9 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo)

Display type: 4.3" LCD touchscreen with 480 x 272 pixels

Digital zoom: 1-; 3-fold

Video output: USB 2.0, Micro HDMI

Measurement

Reflected temperature: manual

Transmission correction: Included

Measuring range: -30 to +100°C; 0 to +350 °C (switchable); 0 to +650 °C (switchable)

High temperature measuring: +350 ... +1200 °C (not in connection with the telephoto lens)

Accuracy: ±2 °C, ±2 % of m.v.

Emissivity :0.01; 1

Accuracy high temperature: ±2 °C, ±2 % of m.v.

Measuring function

Surface moisture distribution :Included

Humidity measurement: Optional

Solar mode – manual: Included

Analysis function : up to 10 measurement points, Hot/Cold Spot Recognition, up to 5 x area measurement (min/max & average), Isotherm and alarm values

Humidity measurement with humidity measuring instrument: with radio humidity probe; (automatic measurement value transfer in real time); *Wireless humidity probes only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Brazil, Chile, Mexico, New Zealand, Indonesia

Imager equipment

Digital camera: Included

Process analysis package: Optional

JPEG storage: included

Video streaming: via HDMI

Video measurement: up to 3 measurement points

Voice recording: Bluetooth****/wired headset

Laser: Laser marker

Panorama image assistant: Included

Power-LED: Included

Standard lens: 42° x 32°

Exchangeable lenses: 25° x 19°; 15° x 11°; 6.6° x 5°

SiteRecognition: Included

Interface: Labview; free download from hompage; USB

Fever detection: Optional

Imager storage

File format image: .bmt; export option in .bmp; .jpg; .png; .csv; .xls

File format video: .wmv; .mpeg-1; Testo format (fully radiometric video)

Storage device: SD cart 2GB (approx. 1500 - 2000 images)

Power supply

Battery type: Fast-charging, Li-ion battery can be changed on-site

Operating time: 4.5 h

Charging options: In instrument / charger (optional)

Mains operation: yes

Ambient Condition

Housing protection class: IP54

Vibration: 2G

Air humidity: 20 to 80 % RH non-condensing

Storage temperature: -30 to +60 °C

Operating temperature: -15 to +50 °C

Physical specification

Tripod mounting: 1/4" - 20UNC

Product-/housing material: ABS

weight (without package): 1,630 g

Weight: 1630 g

Dimensions: 253 x 132 x 111 mm

PC software

System requirements: Windows® 10; Windows Vista; Windows® 7 (Service Pack 1); Windows® 8; Interface: USB 2.0

Standards, tests, warranty

EU-/EG-guidelines: 2004/108/EG
