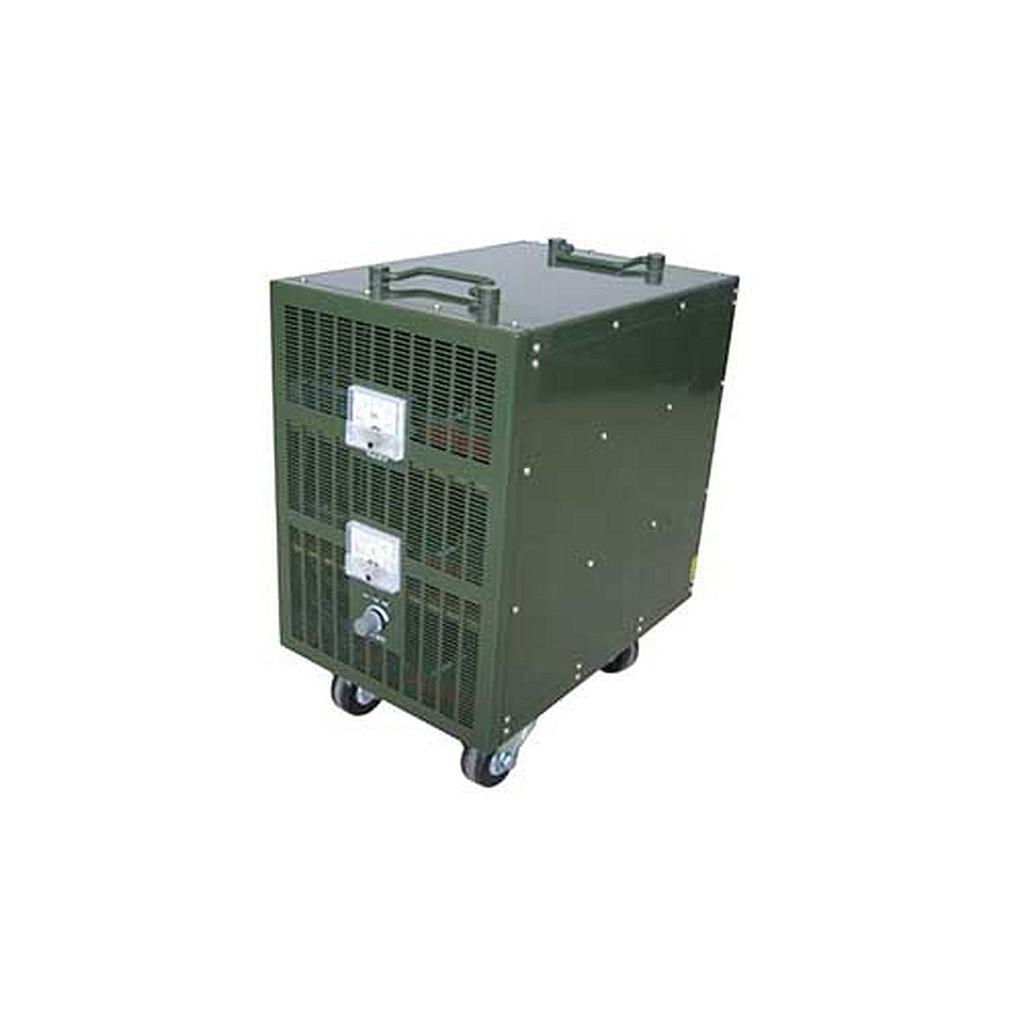

Tonhe TH28J600 Special power supply (22~30VDC, 600A)

  • 制造商: Tonhe
    Model: TH28J600
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Tonhe
Model: TH28J600
Made in China
Warranty: 12 months
Dimension: 303mm×440mm×420mm (W/D/H)
Cooling method: Force-air cooling
Working temperature: -20℃~+55℃
AC input voltage: Three phases, 380VAC±15%
DC output voltage: 22~30VDC
DC output current: 600A
Power factor: ≥0.92
Efficiency: ≥90%
Voltage regulation: ≤±0.1%
Load regulation: ≤±1%
Voltage stabilization accuracy: ≤±2%
Ripple (P-P): ≤200mV
MTBF: ≥5000h
Insulation strength: Input-output 2000VAC, output-earth 500VDC, input-earth 2000VAC, no flashover
Insulation resistance: ≥20MΩ
Protections: Input under/over voltage, phase lack, over temperature protection, output over voltage protection, output over current protection, short circuit protection
