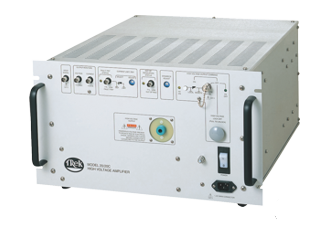

Trek 20 / 20C-L 放大器(100 / 115V)

  • 制造商: TREK
    Model: 20/20C-L
    来源: Virgin Islands (USA)
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Trek

Model: 20/20C-L

Origin: USA

Warranty: 12 months


Line voltage: 100/115V

Output Voltage Range: 0 to ±20 kV DC or peak AC

Output Current Range: 0 to ±20 mA DC peak AC

Input Voltage Range: 0 to ±10 V DC or peak AC

Input Impedance: 25 kΩ, nominal

DC Voltage Gain: 2000 V/V

DC Voltage Gain Accuracy

Better than 0.1% of full scale

Offset Voltage: Less than ± 2 V

Output Noise: Less than 1.5 V rms*

Slew Rate (10% to 90%, typical): Greater than 450 V/µs

Large Signal Bandwidth (-3 dB): DC to greater than 7.5 kHz

Large Signal Bandwidth (1% distortion): DC to greater than 3.75 kHz

Small Signal Bandwidth (-3dB): DC to greater than 20 kHz

Dimensions: 279 mm H x 482 mm W 654 mm D

Weight: 24,9 kg
