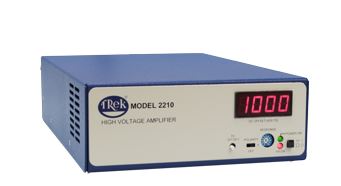

Trek 2210 高压功率放大器
制造商: TREK Model: 2210 - 报价要求
- 联系
Output Voltage Range: 0 to ±1 kV DC or peak AC
Output Current Range: 0 to ±20 mA DC or 40 mA peak AC for 5 ms
Input Voltage Range: 0 to ± 10 V DC or peak AC
Input Impedance: 10 kΩ, nominal
DC Voltage Gain: 100 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than 1 V
Output Noise: Less than 30 mV rms
Slew Rate (10% to 90%): Greater than 150 V/µs
Settling Time: Less than 30 µs for a 0 to 1 kV step
Large Signal Bandwidth : DC to greater 40 kHz kHz (-3dB)
Small Signal Bandwidth (-3dB): DC to greater than 100 kHz
Dimensions:85 mm H x 205 mm W 325 mm D
Weight:2 Kg
