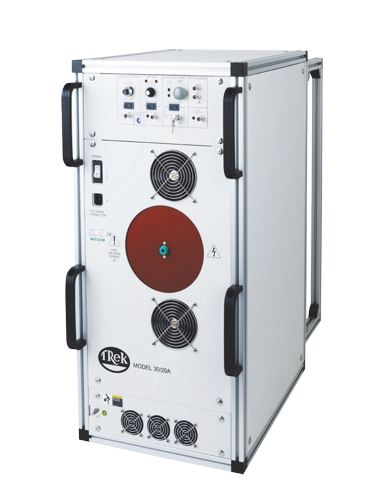

Trek 30 / 20A 高压功率放大器

  • 制造商: TREK
    Model: 30/20A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufaturer: TREK
Model:30/20A
Made in USA
Output Voltage Range: 0 to ±30 kV DC or peak AC
Output Current Range: 0 to ±20 mA DC or peak AC
Input Voltage Range: 0 to ±10 V DC or peak AC
Input Impedance: 25 kΩ, nominal (inverting/differential option
50 kΩ nominal)
DC Voltage Gain: 3000 V/V
DC Voltage Gain Accuracy
Better than 0.1% of full scale
Offset Voltage: Less than ±4 V
Output Noise: Less than 1.5 V rms*
Slew Rate (10% to 90%, typical): Greater than 350 V/µs
Small Signal Bandwidth (-3dB): DC to greater than 30 kHz
Large Signal Bandwidth (2% distortion) :DC to greater than 2.5 kHz
Dimensions: 103.9 cm H x 43 cm W x 87 cm D
Weight: 73 kg

详细

Datasheet
