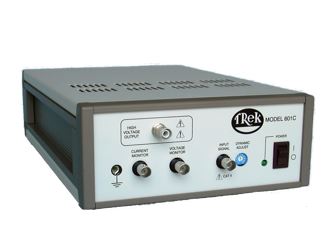

Trek 601C 高压功率放大器

  • 制造商: TREK
    Model: 601C
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufaturer: TREK
Model:601C
Made in USA
Output Voltage Range: 0 to ±500 V, 0 to -1 kV, or 0 to +1 kV DC or peak AC
Output Current Range:0 to ±10 mA,0 to ±20 mA peak AC
Input Voltage Range: 0 to ± 10 V DC or peak AC
Input Impedance: 25 kΩ, nominal
DC Voltage Gain: 100 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than 500 mV
Output Noise: Less than 10 mV rms*
Slew Rate (10% to 90%): Greater than 50 V/µs
Large Signal Bandwidth : DC to greater 8 kHz (1%distortion)
Small Signal Bandwidth (-3dB): DC to greater than 30 kHz
Dimensions:222.3 mm H x 108 mm W 335 mm D
Weight:4.3 Kg

详细

Datasheet
