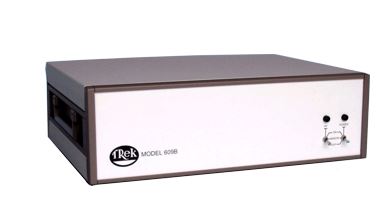

Trek 609B-3高压功率放大器

  • 制造商: TREK
    Model: 609B-3
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufaturer: TREK
Model:609B-3
Made in USA
Output Voltage Range: 0 to ±10 kV DC or peak AC
Output Current Range: 0 to ±2 mA DC or peak AC
Input Voltage Range: 0 to ±10 V DC or peak AC
Input Impedance: 25 kΩ, nominal
DC Voltage Gain: 1000 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±2 V
Output Noise: Less than 50 mV rms*
Slew Rate (10% to 90%: Greater than 30 V/μs
Settling Time: Less than 700 µs for a 0-10 kV step
Large Signal Bandwidth (1% distortion): DC to greater than 400 Hz
Small Signal Bandwidth (-3dB): DC to greater than 10 kHz
Dimensions: 149 mm H x 434 mm W x 370 mm D
Weight: 11 Kg
