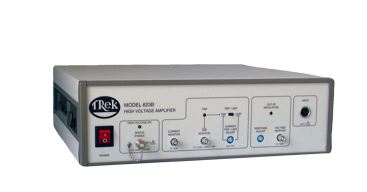

Trek 623B 高压功率放大器

  • 制造商: TREK
    Model: 623B
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufaturer: TREK
Model:623B
Made in USA
Output Voltage Range: 0 to ±2 kV DC or peak AC
Output Current Range: 0 to ±40 mA DC or peak AC
Input Voltage Range: 0 to ± 2 V DC or peak AC
Input Impedance: 25 kΩ, nominal
DC Voltage Gain: 1000 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±1 V
Output Noise: Less than 80 mV rms*
Slew Rate (10% to 90%): Greater than 300 V/µs
Settling Time: Less than 150 µs for a 0 to 2 kV step
Large Signal Bandwidth : DC to greater 10 kHz (1% Distortion)

Small Signal Bandwidth (-3dB): DC to greater than 40 kHz
Dimensions:134 mm H x 432 mm W x 439 mm D
Weight:13,2 Kg
