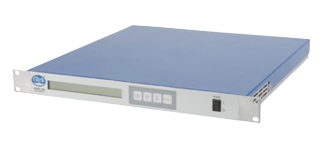

Trek 645 DC/DC电源/ 可变输出/ 机架式(±2kV)

  • 制造商: TREK
    Model: 645
    来源: Virgin Islands (USA)
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Trek

Model: 645

Origin: USA

Warranty: 12 months


- Output Phasing:

 Voltage A (Reference Phase) 0 to ±2 kV

 Voltage B (Phase B = [-1] x Phase A) 0 to ±2 kV

- Output Voltage Range: 0 to ±2 kV

- Output Current Range: 0 to ±6.5 mA DC with a peak capability of 10 mA

- Mechanical:

Dimensions: 43.7 mm H x 421.6 mm W x 457.3 mm D (1.72” H x 16.6” W x 18” D) 1U rack enclosure

Panel Width: 482.6 mm (19”)

Weight: 8.5 lbs (3.86 kg)

Connectors: 15-pin “D” ITT Canon used by remote device to control/monitor the unit, 9-pin “D” ITT Canon RS232,

3-Pin FCT “D” High-Voltage, standard type-A USB, Ethernet (optional) and Front Panel

Power ON/OFF: 2-position rocker switch

- Operating Conditions:

Temperature: 0°C to 35°C (32°F to 104°F)

Relative Humidity: To 85%, noncondensing

Altitude: To 2000 meters (6561.68 ft.)

- Electrical:

DC Input Receptacle: 2.0 mm locking DC jack; center contact is positive and shell is negative (receptacle mates with Switchcraft S761K plug)

Ground Receptacle: Ground stud

Power Requirements: 24 V DC, 1.7 A

- Supplied Accessories:

Operator Manual, SW: PN: 24010

USB Cable: PN: BA103

HV Connectors: PN: B8084R, B8085R, B8088R, B8089R

DC Plug (Switchcraft S761K): PN: BA119R

Line Cord, Fuses: Selected per geographic destination

- Optional Accessories:

90-264 V AC to 24 V DC Power Adapter: PN: IK045
