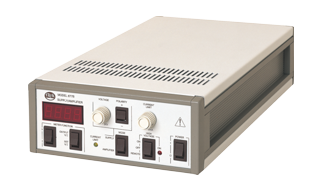

Trek 677B-H 高压放大器(200 / 230V)

  • 制造商: TREK
    Model: 677B-H
    来源: Virgin Islands (USA)
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Trek

Model: 677B-H

Origin: USA

Warranty: 12 months


Line Voltage: 200/230V

Output Voltage Range: 0 to ±2 kV DC or peak AC

Output Current Range:0 to ±5 mA

Input Voltage Range: 0 to ± 10 V DC or peak AC

Input Impedance: 10 kΩ, nominal

DC Voltage Gain: 200 V/V

DC Voltage Gain Accuracy: Better than 0.1% of full scale

Offset Voltage: Less than 5 mV

Output Noise: Less than 100 mV rms*

Slew Rate (10% to 90%): Greater than 15 V/µs

Settling Time: Less than 300 µs for a 0 to 2 kV step

Large Signal Bandwidth : DC to greater 1.2 kHz (1%distortion)

Small Signal Bandwidth (-3dB): DC to greater than 5 kHz

Dimensions:110 mm H x 223 mm W x 432 mm D

Weight:4 Kg

详细

Datasheet
