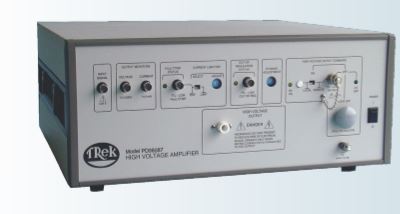

Trek PD06087高压功率放大器

  • 制造商: TREK
    Model: PD06087
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufaturer: TREK
Model:PD06087
Made in USA
Output Voltage Range: 0 to ±5 kV DC or peak AC
Output Current Range: 0 to ±20 mA or peak AC
Input Voltage Range: 0 to ±5 V DC or peak AC
Input Impedance: 20 kΩ, nominal
DC Voltage Gain: 1000 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±2 V
Output Noise: Less than 5 V rms*
Slew Rate (10% to 90%: Greater than 500 V/µs
Settling Time: Less than 100 µs for a 0 to 5 kV step
Large Signal Bandwidth (1% distortion): DC to greater than 15 kHz
Small Signal Bandwidth (-3dB): DC to greater than 20 kHz
Dimensions: 190 mm H x 432 mm W 417 mm D
Weight: 14,9 Kg
