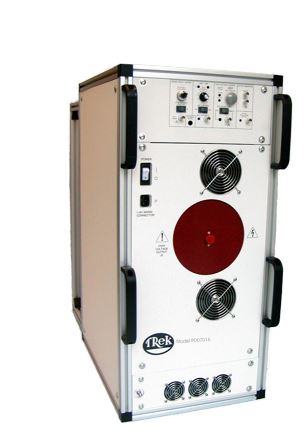

Trek PD07016 高压功率放大器

  • 制造商: TREK
    Model: PD07016
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufaturer: TREK
Model:PD07016
Made in USA
Output Voltage Range: 0 to ±10 kV DC or peak AC
Output Current Range: 0 to ±60 mA DC or 0 to ±300 mA peak capability for 20 μs
Input Voltage Range: 0 to ±10 V DC or peak AC
Input Impedance: 25 kΩ, nominal (inverting/differential option
50 kΩ nominal)
DC Voltage Gain: 1000 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±4 V
Output Noise: Less than 5 V rms*
Slew Rate (10% to 90%, typical): Greater than 1000 V/µs
Large Signal Bandwidth (2% distortion): DC to greater than 10 kHz
Small Signal Bandwidth (-3dB): DC to greater than 20 kHz
Dimensions: 91.4 cm H x 43 cm W x 87 cm D
Weight: 73 Kg

详细

DataSheet
