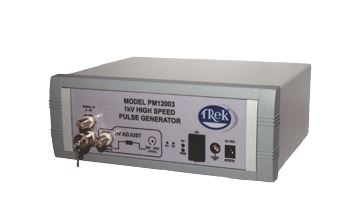

Trek PM12003 高压脉冲发生器(0至+ 1kV峰值AC)

Output Voltage Range: 0 to +1kV peak AC, adjustable.
Max Source Current: Rise Time: Less than 5A peak AC, 5mA DC
Rise Time (10 to 90%, 10pF load): Less than 10ns
Fall Time (10 to 90%,10pF load): Less than 100µs
Maximum Pulse Repetition Rate : 1 kHz
Pulse Width Range: 20 µs to 350 µs
Dimensions: 104mm H x 232mm W x 217mm D
Weight: 1.36kg

Details

DataSheet

  • Output Voltage Range:
  • Max Source Current:
  • Rise Time:
  • Maximum Pulse Repetition Rate:
  • Pulse Width Range:
  • 0 to +1 kV
    5A peak AC, 5mA DC
    Less than 10ns
    1 kHz
    20 μs to 350 μs

The Model PM12003 is a High-Voltage Pulse Generator designed to provide precise control of output voltages in the range of 0 to +1 kV AC with an output current range of 0 to 5 A peak AC or 5 mA DC.

The Model PM12003 features a solid-state output topology for fast rise times.

Typical Applications Include
  • Dielectric testing
  • Electro poration
  • Materials research
  • Nuclear medicine
  • Optics/Photonics
  • Plasma applications
  • Semiconductor testing - IGBT/Diode tests
  • Shock testing of solar panels
Features and Benefits
  • Fast rise time
  • High peak current
  • Adjustable pulse width
